In modern tube processing industries, manufacturers are constantly seeking equipment that can improve production efficiency while maintaining high forming accuracy and consistent product quality. Traditional single-end tube forming machines often require multiple processing steps, resulting in longer cycle times, higher labor costs, and increased risks of dimensional errors.

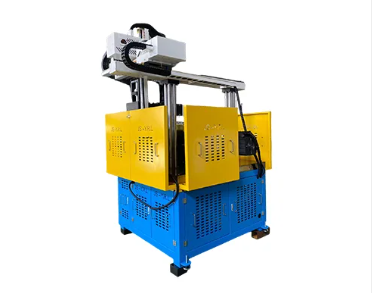

The Dual-Side Synchronous Tube Forming Machine provides an advanced solution by processing both ends of a tube simultaneously in a single operation. With high-rigidity mechanical construction, servo-controlled positioning technology, and flexible tooling compatibility, this machine is designed to meet the requirements of high-speed and precision tube manufacturing.

It is widely used in industries requiring reliable tube forming performance, including automotive components, heat exchangers, furniture structures, metal frames, and industrial equipment manufacturing.

Dual-Side Synchronous Forming for Higher Productivity

One of the biggest advantages of this tube forming machine is its dual-side synchronous forming technology.

Unlike conventional equipment that processes one tube end at a time, this system allows both ends of the tube to be formed simultaneously during one production cycle.

This advanced design provides:

• Double-side processing efficiency

• Reduced production cycle time

• Higher machine utilization

• Lower labor requirements

• Improved overall production capacity

By completing both forming operations at the same time, manufacturers can significantly increase output without adding additional production lines.

Precision Control Ensures Consistent Forming Quality

High-speed production requires not only efficiency but also excellent process stability.

The dual-side synchronous forming system adopts closed-loop control technology to maintain accurate forming parameters throughout operation.

The intelligent control system helps achieve:

• High forming symmetry

• Excellent dimensional consistency

• Accurate positioning

• Reduced processing deviation

It effectively prevents common tube forming defects, including:

• Position offset

• Surface scratches

• Wrinkles

• Material deformation

This ensures every finished tube meets strict quality requirements for downstream assembly and processing.

Heavy-Duty High-Rigidity Frame for Stable Operation

For industrial production environments, machine rigidity directly affects forming accuracy and service life.

The Dual-Side Synchronous Tube Forming Machine features a reinforced welded frame structure with professional stress-relief heat treatment.

With a total machine weight of approximately:

5.5 tons

the heavy-duty structure provides:

• Excellent mechanical rigidity

• Strong deformation resistance

• Reduced vibration during operation

• Long-term dimensional stability

Even under continuous high-speed production conditions, the machine maintains stable performance and reliable forming accuracy.

Advanced Motion System Improves Accuracy

To ensure precise tube positioning and repeatable forming results, critical motion components are equipped with advanced technologies.

Key components include:

Precision Linear Guideways

High-accuracy guide systems provide smooth movement and reduce mechanical wear.

Servo-Driven Positioning System

Servo control technology enables:

• Precise positioning adjustment

• Fast response speed

• High repeatability

• Stable production performance

The combination of rigid mechanical design and intelligent motion control allows the machine to achieve excellent accuracy in continuous production.

Wide Tube Compatibility and Flexible Production Capability

Modern manufacturers often need to process different tube specifications for various applications.

This tube forming machine supports a wide processing range:

• Tube diameter: Below 50 mm

• Wall thickness: 0.5–2.5 mm

It is suitable for short and medium-length tube products and can handle different production requirements through flexible tooling configurations.

Applications include:

• Automotive tubes

• Heat exchanger components

• Metal furniture structures

• Industrial tubing systems

• Customized tube assemblies

Quick Die Change System Reduces Production Downtime

For manufacturers handling multiple product models, fast tooling replacement is essential.

The machine features a quick-change die system that enables:

• Faster mold replacement

• Reduced machine downtime

• Improved production flexibility

• Easier multi-product manufacturing

This makes it especially suitable for:

• Small-batch production

• Multi-variety manufacturing

• Customized tube processing

Manufacturers can quickly switch between different tube specifications and improve overall production efficiency.

High-Speed Production with Stable Output

Efficiency is a key factor in modern manufacturing competition.

The Dual-Side Synchronous Tube Forming Machine achieves a standard production cycle of:

8–12 seconds per piece

while maintaining excellent forming quality.

High-speed operation is supported by:

• Stable mechanical structure

• Precise servo control

• Optimized forming process

• Reliable tooling design

Production advantages include:

• Higher output capacity

• Lower defect rate

• Improved yield rate

• Reduced processing cost per unit

This helps manufacturers achieve better production economics while maintaining product quality.

Applications of Dual-Side Synchronous Tube Forming Machines

This advanced tube forming solution is suitable for a wide range of industries.

Automotive Manufacturing

Used for forming automotive structural tubes, exhaust components, and precision metal parts.

Heat Exchanger Industry

Provides efficient tube end forming for components requiring accurate dimensions and reliable connections.

Furniture and Metal Products

Suitable for manufacturing:

• Metal chair frames

• Table structures

• Decorative tube products

Industrial Equipment Manufacturing

Supports production of various metal tube assemblies used in machinery and equipment.

Key Advantages Compared with Traditional Tube Forming Equipment

Compared with conventional single-end forming machines, the dual-side synchronous design offers:

Higher Efficiency

Both tube ends are processed simultaneously, reducing cycle time.

Better Accuracy

Closed-loop control ensures consistent forming results.

Stronger Stability

Heavy-duty frame construction minimizes vibration and deformation.

Greater Flexibility

Quick-change tooling supports different tube specifications.

Lower Production Costs

Higher output and reduced defects improve overall manufacturing efficiency.

Conclusion

The Dual-Side Synchronous Tube Forming Machine represents a new generation of efficient and precise tube processing technology. By combining simultaneous two-end forming, high-rigidity mechanical design, servo-controlled positioning, and flexible tooling systems, it provides manufacturers with a reliable solution for high-volume and high-quality tube production.

For companies looking to improve manufacturing efficiency, reduce processing costs, and maintain consistent product quality, this advanced tube forming equipment offers a powerful upgrade for modern production lines.
