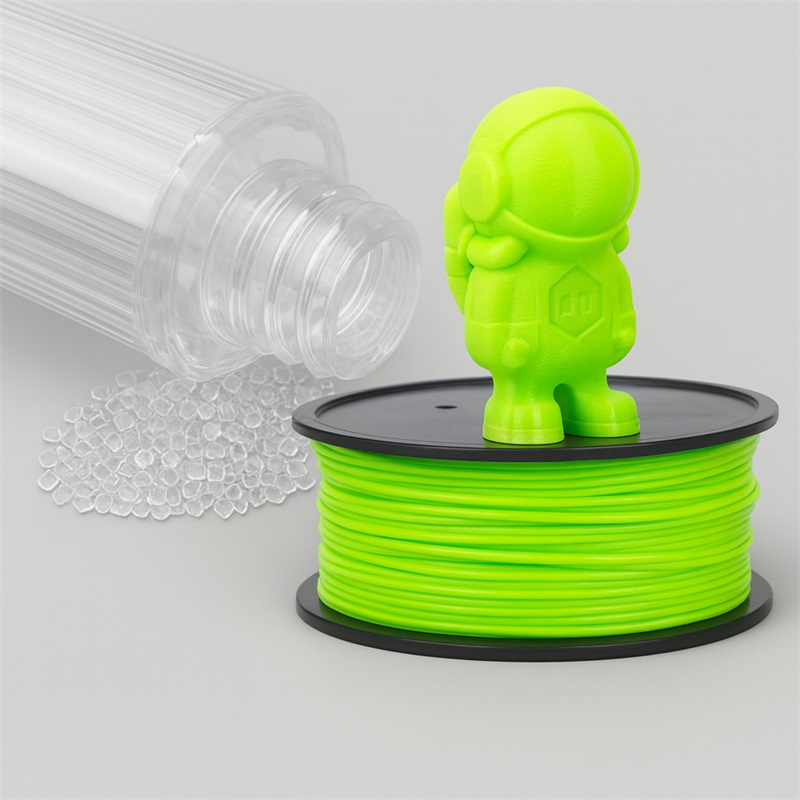

High Performance PETG Resin WS-501

1.Property

IntrinsicViscosity

dL/g

Ubbelodhe viscometerUbbelodhe viscometer

Specific Gravity

g/cm3

ASTM D792

1.27

Moisture Absorption

%

ASTM D570

0.15

2.Mechanical

Tensile Strength @Yield

50mm/min(2 inch/min)

kgf/cm²

ASTM D638

496

Tensile Strength @Break

50mm/min(2 inch/min)

kgf/cm²

ASTM D638

281

Elongation @Yield

50mm/min(2 inch/min)

%

ASTM D638

3.7

Elongation @Break

50mm/min(2 inch/min)

%

ASTM D638

136

Flexural Strength

1.27mm/min(2 inch/min)

kgf/cm2

ASTM D790

620

Flexural Strength

1.27mm/min(3 inch/min)

kgf/cm2

ASTM D790

20800

Low temperature falling dart

impact

g

ASTM D358

791

Atmospheric temperature

falling dart impact

g

ASTM D358

1701

Izod Impact Strength Notched@23℃(73℉)

J/m

ASTM D256

98

3. Hardness

Rockwell Hardness

℃

R-scale

106

4. Thermal

Heat Distortion Temperature

@0.45MPa(66 psi)

℃

ASTM D648

77

Melting Index

g/10min

ASTM D1238-04

1.2

Melting point

℃

≥196±2

5. Electric Properties

Surface Resistivity

Ohm

ASTM D257

10¹⁶

Volume Resistivity

Ohm·cm

ASTM D257

10¹⁵

Dielectric Strength (Short time, 500V/sec)

kV·mm

ASTM D149

16

Dielectric Constant (1 kHz)

–

ASTM D150

2.6

Dielectric Constant (1 MHz)

–

ASTM D150

2.4

Dissipation Factor (1 kHz)

–

ASTM D150

0.005

Dissipation Factor (1 MHz)

–

ASTM D150

0.023

6. Flammability

UL Flammability Classification (1.00mm)

–

UL 94

HB

UL Flammability Classification (1.50mm)

–

UL 94

HB

UL Flammability Classification (3.00mm)

–

UL 94

V-2

7. Optical Properties

Haze

%

–

<1.0

Transmittance

%

ASDM D541

90

Refractive Index

–

ASDM D542

1.52
