Hastelloy C-276
Hastelloy C-276 (UNS N10276) is a high-performance nickel-chromium-molybdenum alloy known for its exceptional resistance to corrosion, pitting
UNS Number N10276
Hastelloy C-276 has a excellent resistance to localized corrosion, stress corrosion cracking, oxidizing and reducing media, which is suit for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions. Meanwhile, Hastelloy C276 is the few kinds of material that can withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.
Applications:
Hastelloy C276 is applied in these field, like Chemical processing, waste treatment, pollution control, pulp and paper production, and marine engineering, etc.
Forms of Hastelloy C276 Available at Bosco Alloy

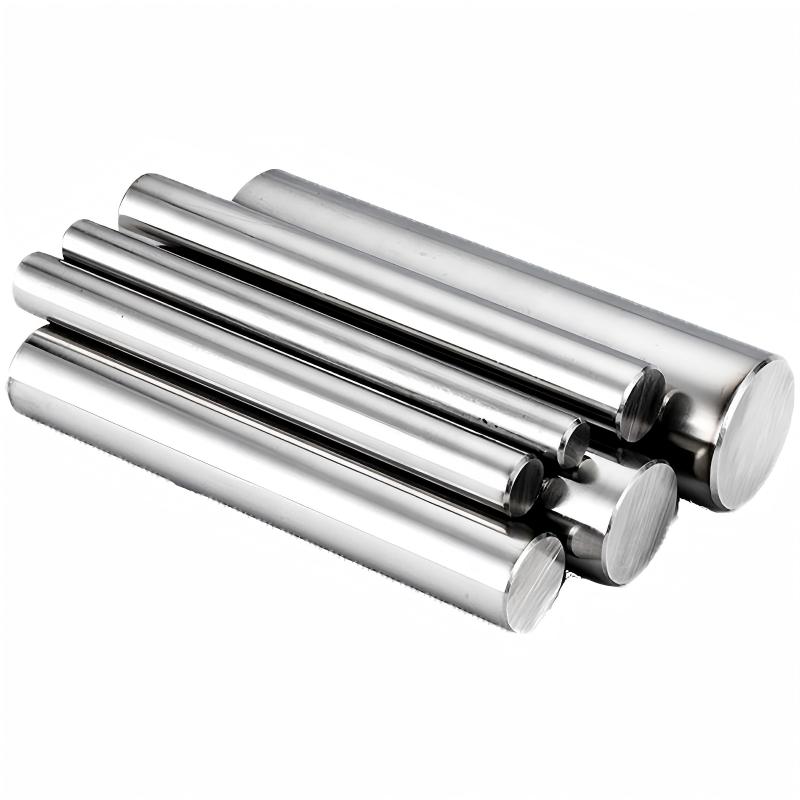

• Bar
• Sheet
• Plate
• Pipe & Tube (welded and seamless)
• Pipe Fittings
• Welding Wire
Hastelloy C-276 Chemical composition:
| Alloy |
% |
Ni |
Cr |
Mo |
Fe |
W |
Co |
C |
Mn |
Si |
V |
P |
S |
| C | Min. | balance | 14.5 | 15 | 4 | 3 | |||||||
| Max. | 16.5 | 17 | 7 | 4.5 | 2.5 | 0.08 | 1 | 1 | 0.35 | 0.04 | 0.03 | ||
| C276 | Min. | balance | 14.5 | 15 | 4 | 3 | |||||||
| Max. | 16.5 | 17 | 7 | 4.5 | 2.5 | 0.01 | 1 | 0.08 | 0.35 | 0.04 | 0.03 |
Hastelloy C-276 Physical properties:
| Density |
8.9 g/cm³ |
| Melting point |
1325-1370 ℃ |
Hastelloy C-276 Alloy m inimum mechanical properties in the room temperature:
| Alloy state |
Tensile strength |
Yield strength R P0. 2N/m㎡ |
Elongation |
| Rm N/m㎡ |
A 5 % |
||
| C /C276 | 690 | 283 | 40 |
ASTM Specifications
| Pipe Smls |
Pipe Welded |
Tube Smls |
Tube Welded |
Sheet/Plate |
Bar |
Forging |
Fitting |
| B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
Products In Stock

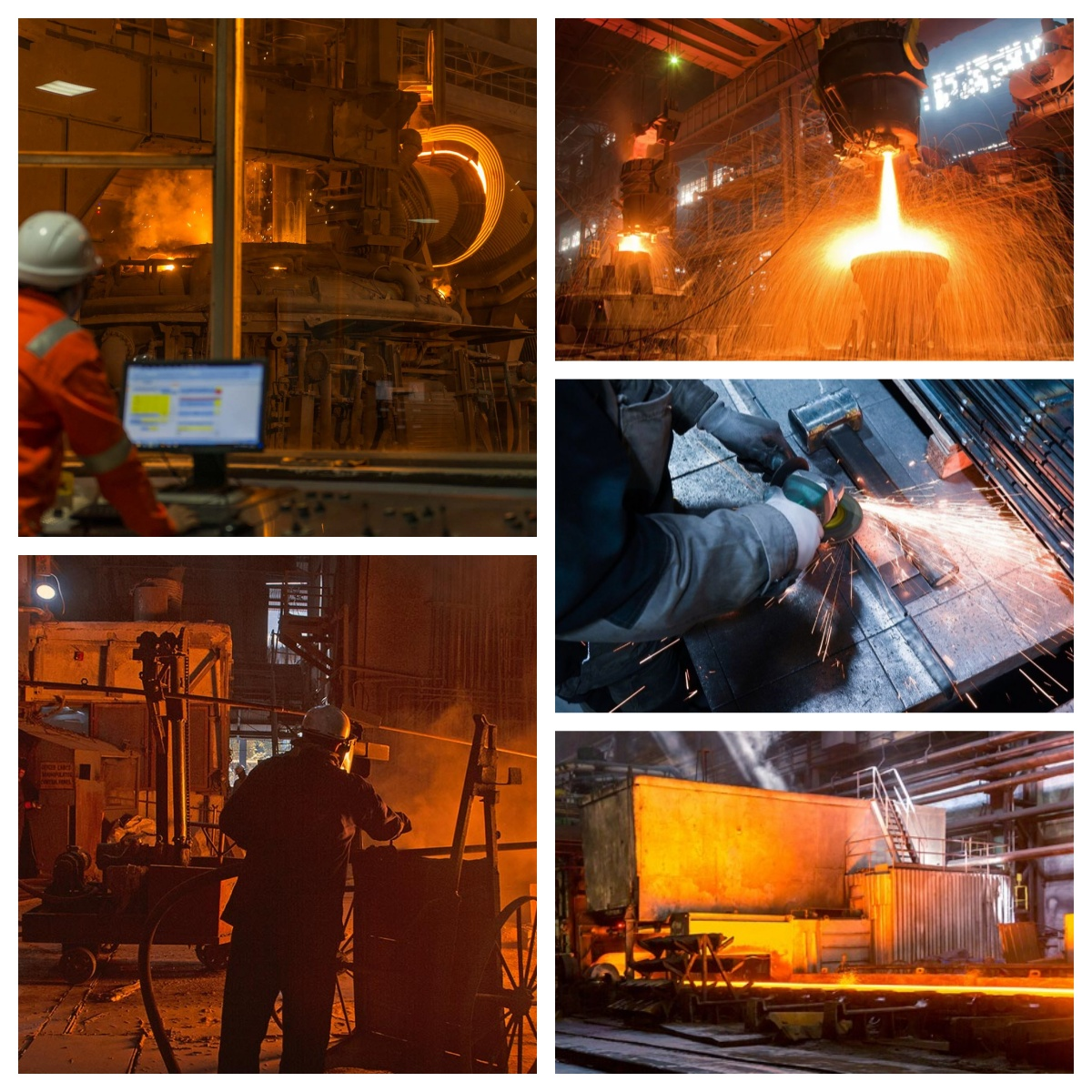

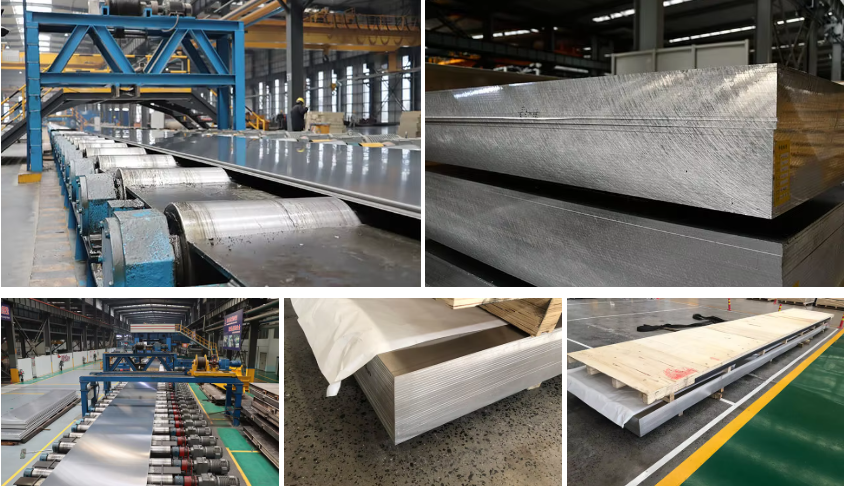

Manufacturing Technique
