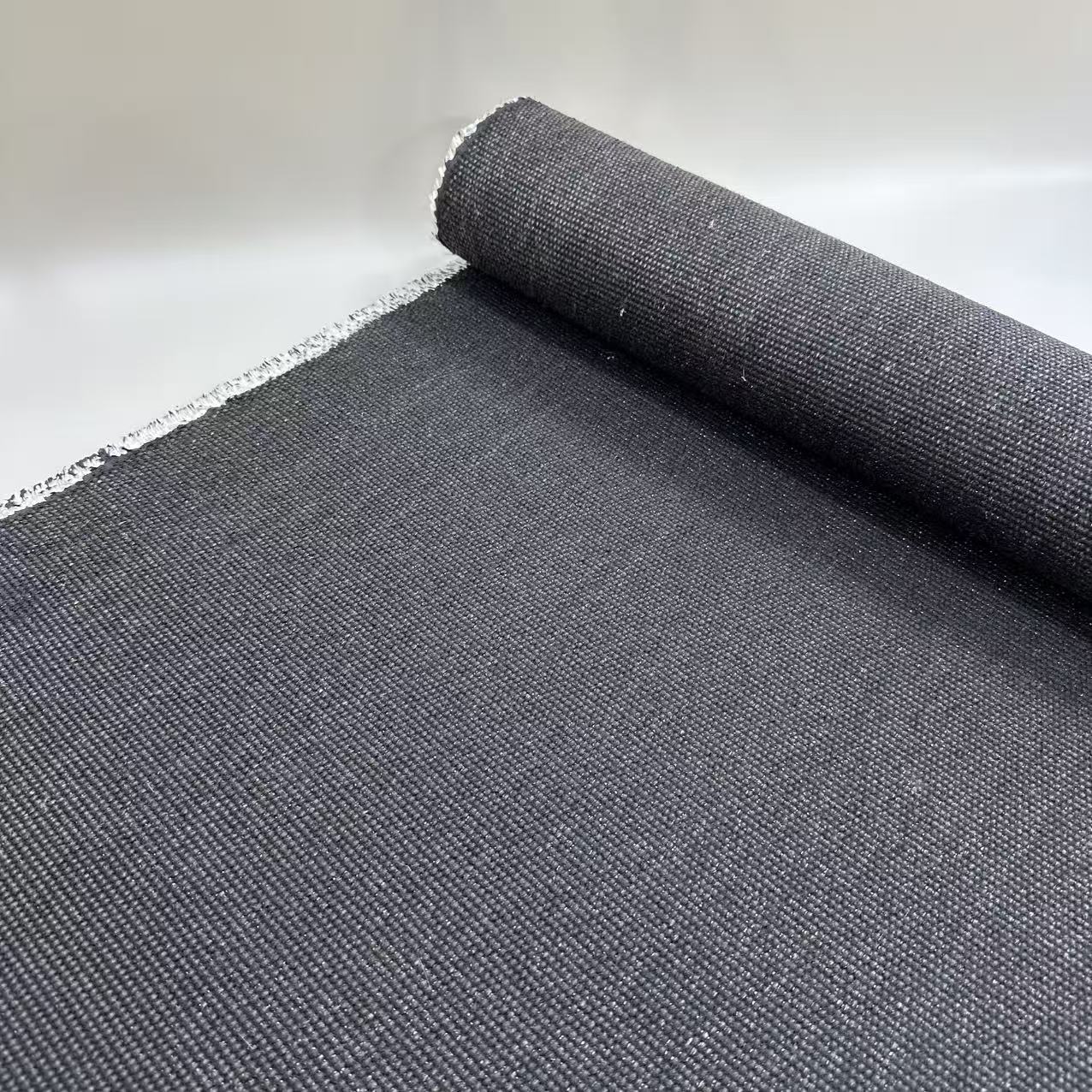

Graphene Coated Fiberglass Fabric
Graphene coated fiberglass fabric can maintain stability in high temperature environments, with a working temperature resistance of up to 550 ℃ and a coating working temperature resistance of up to 260 ℃.
Graphene coated fiberglass fabric can maintain stability in high temperature
environments, with a working temperature resistance of up to 550 ℃ and a coating
working temperature resistance of up to 260 ℃. This fabric is made of a
composite weaving of ultra long glass fiber and stainless steel wire, with
extremely high tear resistance and wear resistance. Its mechanical protection
performance far exceeds that of ordinary fabrics, and it has excellent fire
resistance, which can effectively prevent the spread of fire. It is suitable for
occasions that require fire isolation
Product Parameters
|
Item |
Details |
|
Surface Treatment |
Graphene Coated |
|
Coating Side |
Single Side / Double Side |
|
Color |
Grey |
|
Thickness |
0.2mm-3mm |
|
Weight |
200gsm – 3000gsm or customized |
|
Width |
1m – 2m or Customized |
|
Temperature Standing |
550°C (1022°F) |
|
Roll Length |
50m/roll or customized |
|
Base Cloth Material |
Filament Fiberglass Cloth, Texturized Fiberglass Cloth, High Silica Cloth, Steel Wire Reinforced Fiberglass Cloth |
Product Properties
●Good performence in spark & flame resistant.
●Excellent anti abrasion property.
●Chemicals resistance, weatherproof, waterproof.
●Halogen free, asbestos free, non-itchy.
Applications
●Detachable insulation sleeve
●Fan soft connection
●Fireproof blanke
●Fireproof and thermal insulation curtain
