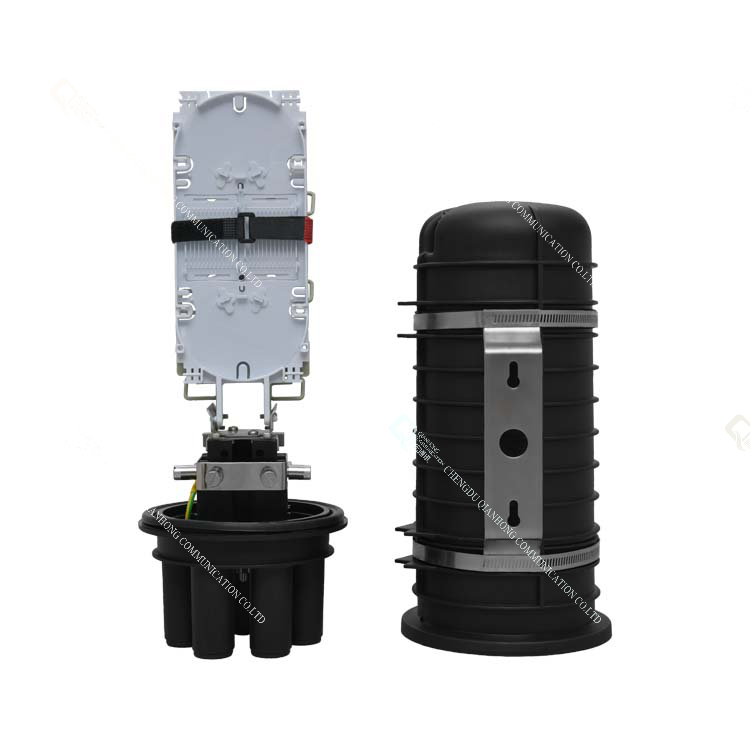

GP294 48 Fibers Dome Type Fiber Optic Splice Closure, with Adapter SC/24

Product Overview

The Qianhong Dome Type Fiber Optic Splice Closure (FOSC) is designed to protect and organize fiber optic splicing points in outdoor communication networks. Its classic dome-shaped structure combines fiber splicing, cable protection, and environmental sealing in one practical enclosure.

The closure supports several installation methods, including aerial, pole-mounted, wall-mounted, pipeline, and direct-buried applications. With a reusable mechanical structure and heat-shrink sealing method, it is suitable for fiber networks that require convenient installation, maintenance, and long-term protection.

Reliable Protection for Outdoor Fiber Connections

Outdoor fiber optic connections can be exposed to moisture, dust, mechanical stress, temperature changes, and other environmental conditions. The Qianhong fiber optic splice closure is built around a sealed dome structure to provide protection for internal fiber splicing components.

Its design focuses on several key requirements for outdoor fiber deployment:

• Strong mechanical construction

• Effective environmental sealing

• Corrosion resistance

• Weather resistance

• Reusable and maintainable structure

• Flexible installation options

• Efficient field deployment

This makes the closure suitable for different fiber access and distribution environments where reliable protection is required.

Flexible Installation Configurations

The Dome Type Fiber Optic Splice Closure can be deployed across various network layouts. Depending on project requirements, it can be installed on walls, poles, aerial lines, pipelines, or directly underground.

This installation flexibility allows network contractors and operators to select a suitable deployment method without changing the basic closure design.

Typical installation environments include:

• Wall-mounted fiber installations

• Pole-mounted communication networks

• Aerial fiber optic cables

• Pipeline and duct networks

• Direct-buried fiber optic systems

Heat-Shrink Sealing for Environmental Protection

The closure uses a heat-shrink sealing method to help protect internal fiber connections from external environmental exposure. Combined with its IP68 protection rating, the enclosure is designed for demanding outdoor network applications.

The sealed structure helps maintain a protected internal environment around the splice area, supporting the long-term operation of fiber optic connections in outdoor installations.

High Fiber Splicing Capacity

Model GJS03-M1AX-SC-24 24–48C (GP294) is designed to accommodate up to 48 fiber cores. The closure supports a maximum splice tray capacity of 24 and provides 1+4 cable entry ports.

The cable entry design supports both oval and round cable configurations, offering flexibility for different cable arrangements.

Technical Specifications

Designed for Maintainable Fiber Networks

A major advantage of the Qianhong Fiber Optic Splice Closure is its maintainable structure. The mechanical design supports repeated access when fiber connections need inspection, maintenance, or reconfiguration.

Instead of treating installation and maintenance as separate requirements, the closure combines protection with practical field operation. This helps simplify deployment work while providing a structured enclosure for fiber splicing.

Applications in Fiber Optic Communication

The Dome Type Fiber Optic Splice Closure can be used in a variety of outdoor optical communication projects, including:

• Fiber-to-the-home (FTTH) networks

• Outdoor fiber distribution systems

• Aerial communication networks

• Pole-mounted fiber infrastructure

• Underground duct networks

• Direct-buried optical cable installations

• Fiber optic cable splicing and protection

Its combination of flexible mounting options, IP68 protection, heat-shrink sealing, and up to 48-core capacity makes it adaptable to different outdoor network configurations.

Custom Options for Different Projects

Fiber optic deployment projects can involve different cable types, entry configurations, and adapter requirements. Qianhong provides optional configurations according to customer requirements, allowing the closure to be adapted to specific project needs.

With a focus on reliability, installation efficiency, flexibility, and deployment speed, the Qianhong dome-type closure provides a practical enclosure solution for protecting fiber optic splice points across a wide range of outdoor communication networks.
