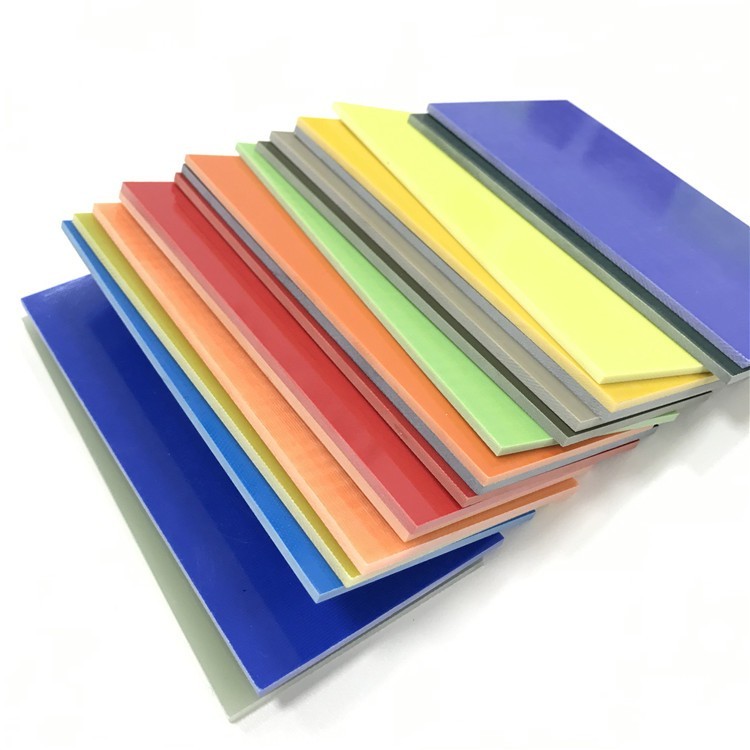

G10 Epoxy Fiberglass Sheet

G10 epoxy sheet is a composite laminated material manufactured by impregnating electronic-grade alkali-free glass fiber fabric with epoxy resin as a binder, followed by layer-by-layer lamination under high temperature and pressure.

Core Composition:

• Reinforcing Material: Glass fiber fabric — provides extremely high mechanical strength and dimensional stability.

• Binder: Epoxy resin — offers excellent electrical insulation, chemical resistance, and bond strength.

Key Characteristics:

• Exceptional Mechanical Strength: Features an outstanding strength-to-weight ratio, with high tensile, compressive, and flexural strength, ensuring durability and ruggedness.

• Excellent Electrical Insulation: Maintains high dielectric strength and resistivity in both dry and humid environments, making it an ideal insulating material.

• Low Water Absorption: Its dense molecular structure minimizes moisture uptake, allowing it to retain performance and dimensional stability even in humid conditions.

• Good Chemical Resistance: Resists most solvents, acids, and bases, providing strong corrosion resistance.

• High Dimensional Stability: Exhibits minimal shape or size changes under varying temperatures and humidity levels.

• Ease of Machining: Can be processed using standard metalworking equipment, including drilling, milling, cutting, turning, and grinding.

Applications and Functions

Thanks to its comprehensive performance, G10 epoxy laminate is widely used in fields requiring structural strength, insulation, and durability.

Electronics and Electrical Industry (Primary Application Field)

• Printed circuit board (PCB) substrates

• Insulating spacers

• Transformer barriers

• Circuit breaker liners

• Insulating structural components for distribution cabinets

• Test jigs (e.g., bed-of-nails test fixtures)

Marine and Maritime Applications

• Electrical panels in ships

• Insulating components

• Enclosures for electronic equipment

Sports Equipment and High-End Consumer Goods

• Knife handle scales

• Crossbow arrow rests

• Structural layers in skateboards

• Fishing gear components
