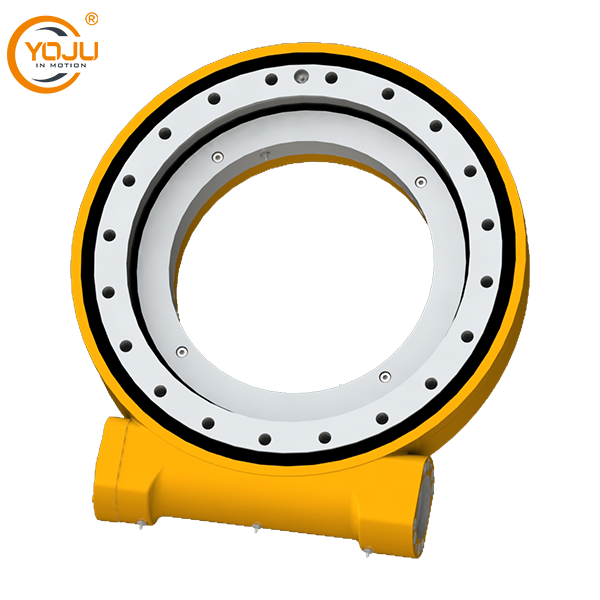

FWA17 Enclosed housing Slewing Drive
YOJU FWA/FWB series Slew Drive has Enclosed housing and Shaft seals, and Ingress Protection can reach IP65, which can effectively prevent dust and water from entering the Slew Drive…
FWA/FWB Series Specification:
YOJU FWA/FWB series Slew Drive has Enclosed housing and Shaft seals, and Ingress Protection can reach IP65, which can effectively prevent dust and water from entering the Slew Drive, requiring less maintenance.
YOJU has the special worm gear technology, material, and surface heat treatment process, FWA/FWB series can output super torque, more wear-resistant and longer working life.
FWA/FWB Series Features:
● Enclosed housing with shaft seals for improved sealing capability up to IP65;
● Specially designed and heat treated worm gear and worm shaft;
● 360° Clockwise and counterclockwise continuous rotation;
● Self-locking/non-self-locking worm gear optional;
● Metric or British optional, Customizable Installation size and input interface;
● Single worm shaft and Double worm shaft optional, Double Torque;
FWA/FWB Series Performance Parameters:
| Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Ratio | Backlash | Weight |
| 12.96 KN.M | 142.4 KN.M | 74 KN.M | 1166 KN | 435 KN | 104:1 | ≤0.1° | 97Kg |
| 9564 Ibf.Ft | 105×10³ Ibf.Ft | 54.7×10³ Ibf.Ft | 262×10³ Ibf | 97.8×10³ Ibf |
FWA/FWB Series Applications:
Truck Mounted Crane, Aerial Working Platform, Drilling Machine, Rotate Platform
