Full Wavelength Microplate Reader: DR-5000 In-Depth Review

Understanding the Full Wavelength Microplate Reader Need in Modern Laboratories

Laboratories engaged in biological, chemical, and physical assay work face a persistent challenge: achieving high-precision, flexible wavelength detection without the operational limitations imposed by fixed filters. Traditional microplate readers often require manual filter changes, which slows down multi-assay workflows and restricts the range of wavelengths available for analysis. This is precisely the pain point that Wuxi Hiwell-Diatek Instrument Co., Ltd., operating under the brand Diatek, addresses with its DR-5000 Full Wavelength Microplate Reader.

Corporate Background: Wuxi Hiwell-Diatek Instrument Co., Ltd.

Headquartered in Jiangsu Province, China, Wuxi Hiwell-Diatek Instrument Co., Ltd. positions itself as a provider of high-sensitivity optical UV/Visible spectrophotometry and automated microplate reading solutions. The company’s strategic focus centers on integrating modern mobile operating systems into laboratory instrumentation to improve efficiency. Its business coverage extends across Brazil, the United Arab Emirates, the United States, Peru, Algeria, and Chile, reflecting a genuine international trade and distribution footprint in North America, South America, and the Middle East/Africa regions.

As an Industrial Laboratory Equipment Manufacturer, Diatek’s development history shows a clear product evolution path: the DR-5000 series began with standard reading capabilities and progressed to a “Pro” version featuring enhanced transmittance accuracy and stray light control. A notable milestone in this evolution was the implementation of Android 5.1 into laboratory hardware, which brought smartphone-like touch operation and visual workflow design into the microplate reading process.

Core Technical Capabilities of the DR-5000 Series

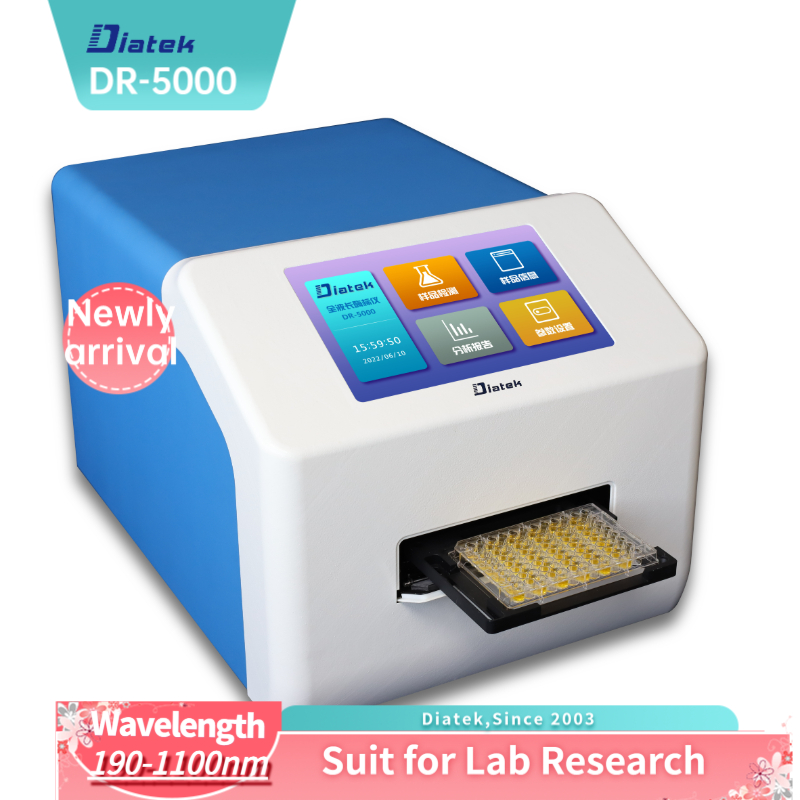

The DR-5000 Full Wavelength Microplate Reader is built around a proprietary monochromator technology that uses high-precision gratings for filter-free wavelength tuning. This grating monochromator enables freely selectable wavelengths from 190–1100 nm, in increments of either 0.1 nm or 1 nm, allowing laboratories to run various assays without purchasing additional filters.

The instrument’s technical metrics underscore its precision:

• Wavelength Accuracy: ±0.5 nm
• Absorbance Stability: ≤±0.002A
• Wavelength Repeatability: ≤0.2 nm
• Detection Speed: 10 seconds for a 96-well plate

These specifications are complemented by a dual light source system, combining Deuterium and Tungsten halogen lamps, or an optional high-energy Xenon flash lamp. The Pro model further refines the optical system, achieving stray light control ≤0.05%, while offering high-speed continuous reading capabilities of 16.5 seconds for a full 96-well plate.

On the data side, the DR-5000 supports 4-Parameter Logistic (4PL) regression, spectral scanning, kinetic data analysis, and multiple linear/non-linear regression modeling. Real-time endpoint and kinetic data analysis are supported through built-in calibration methods, including Log-Log, Power, and Polynomial models, giving researchers flexibility in how they process and interpret their data.

Operational Efficiency Through Android Integration

A defining feature of the DR-5000 is its 10-inch capacitive color LCD touchscreen, powered by an Android-based instrument control platform. This interface reduces the learning curve for laboratory personnel and streamlines the “Layout → Analysis → Processing” workflow, making the transition from manual filter-based systems to an intuitive, visual operation significantly smoother.

Automated Precision and Environmental Control

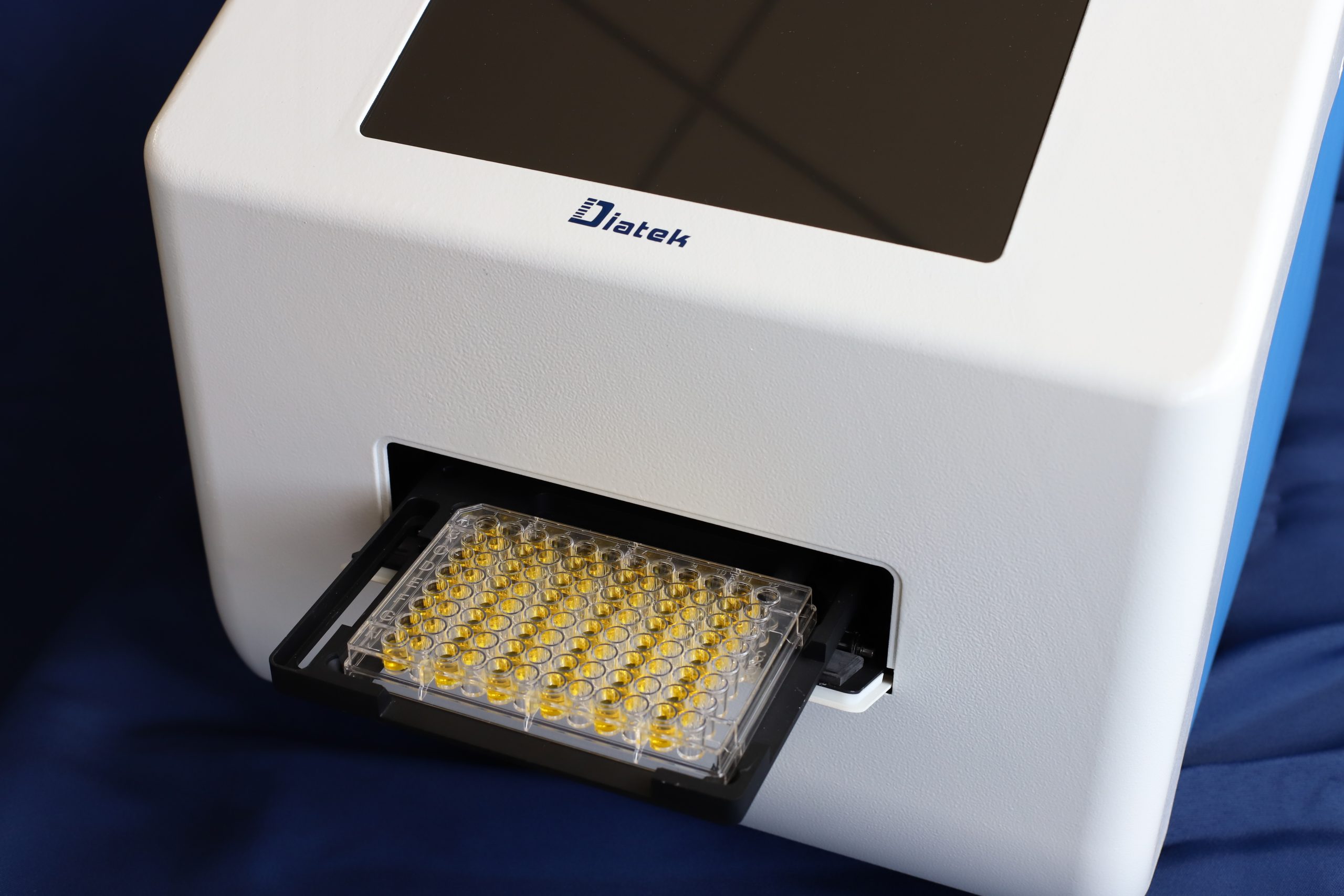

The DR-5000 incorporates an automatic open/close plate drawer with motorized control for microplate entry and exit, which prevents manual handling errors and protects the optical path. Its incubation module provides temperature control ranging from Room Temperature +4°C up to 45°C, ensuring stability for temperature-sensitive biological reactions. Additionally, multi-speed shaking—offering both linear and orbital motion across three speed settings—optimizes sample mixing while preventing liquid spilling.

Platform Compatibility and Software Ecosystem

The DR-5000 supports both USB-A and USB-B interfaces, making it compatible with U-disks, USB printers, and peripheral devices such as keyboards and mice. For data openness, the instrument offers FTP service support, allowing PC software to upload and download detection data, with export formats including TXT, PDF, Word, and Excel. The accompanying Diatek Microplate Analysis Software can be used in standalone mode or connected to a PC, giving laboratories flexibility in how they integrate the device into existing workflows.

Industry Applications and Customer Base

The DR-5000’s flexibility supports a range of laboratory needs:

• Life Sciences: DNA/RNA quantification with a 2ng/µl detection limit, along with protein assays.
• Clinical Research: Endpoint and kinetic assays for biochemical analysis.
• Chemical Testing: Turbidity studies and spectral scanning.

This versatility has positioned the instrument for use across industries including biotechnology and life sciences, clinical diagnostics (IVD), chemical manufacturing, academic research and education, and healthcare laboratories. Customer types include provincial laboratories, university research centers, diagnostic test manufacturers, and international laboratory equipment distributors—demonstrating that the equipment is designed for both research-level and production-level environments.

Service Model and After-Sales Support

Diatek’s service approach combines hardware with the Diatek Microplate Analysis Software, supporting both standalone and PC-connected operation. The company’s service scope includes technical installation guidance, sample handling advisory, training, and maintenance support. Customers benefit from a 1-year free warranty, lifetime maintenance services, and a 5-year product lifespan commitment, which collectively reflect a long-term approach to customer support rather than a one-time transaction model.

Deployment is designed to be straightforward: the system initializes through an automated startup check with color-coded status indicators—blue for normal operation and yellow for error states—helping laboratory staff quickly identify system status without extensive technical training.

Market Recognition and Compliance

The DR-5000’s visual workflow design meets IVD human factors engineering standards, an important consideration for laboratories operating under regulated diagnostic environments. On the transaction side, Diatek’s offerings are verified by Alibaba.com Trade Assurance, with SSL and PCI DSS data protection protocols safeguarding payment security. These measures, combined with Alibaba’s trade protection for order refunds and shipping, provide an additional layer of assurance for international buyers sourcing laboratory equipment across borders.

Final Assessment

For laboratories seeking a full wavelength microplate reader capable of handling diverse biological, chemical, and physical assays without the constraints of fixed filters, the Diatek DR-5000 series offers a combination of spectral flexibility (190–1100 nm), Android-based touch operation, automated plate handling, and long-term service commitments. Its filter-free monochromator design, precise technical metrics, and comprehensive software ecosystem make it a technically grounded option for provincial laboratories, university research centers, and diagnostic manufacturers evaluating their next microplate reading platform.
