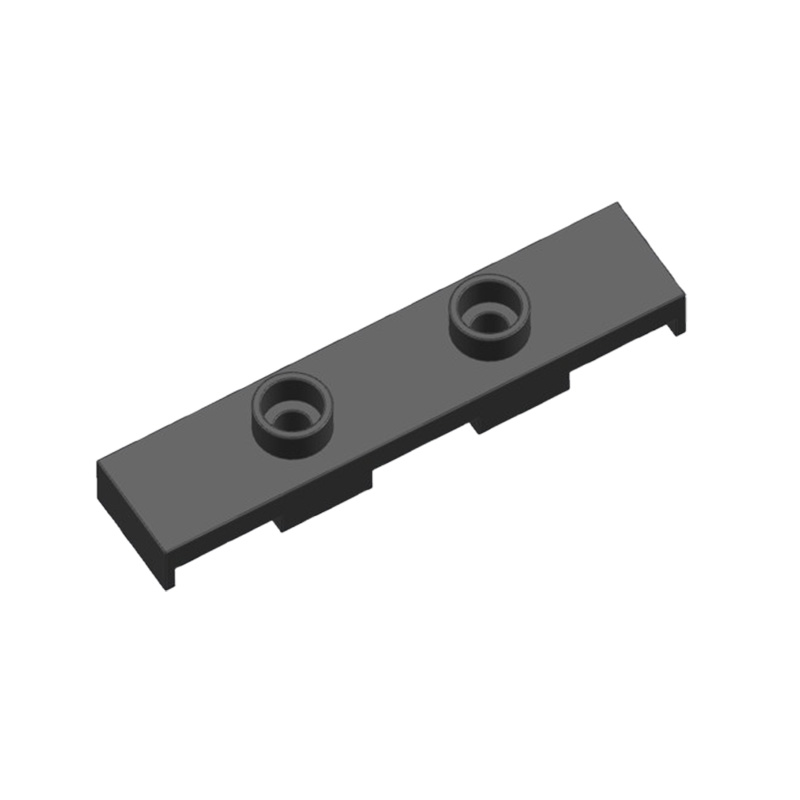

EP-ET-0002-00-Transistor Press Strip (Three Tubes) – 18X82
1.Through-hole diameter: 4.2mm;
2.Fixing screws: M3 or M4 standard screws;
3.Screw torque: 6～8 Kgf.cm (0.6～0.8 N.m);
4.Fixing type: fixed for three transistors (chips)
1. Through-hole diameter: 4.2mm;
2. Fixing screws: M3 or M4 standard screws;
3. Screw torque: 6～8 Kgf.cm (0.6～0.8 N.m);
4. Fixing type: fixed for three transistors (chips);
5. Installation distance: center-to-center distance between chips is
approximately 30～31mm;
6. Chip size: 16×10, 20x16mm (such as TO-220, TO-247), etc.;
7. Chip thickness: approximately 3～6mm;
8. Ambient temperature: -40°C～150°C;
9. Flame retardant rating: UL94V-0;
10. Main material: PA+35GF;
11. All materials comply with RoHS requirements;Appearance requirements: no
burrs, flash, mold marks, or other defects that affect product function.
