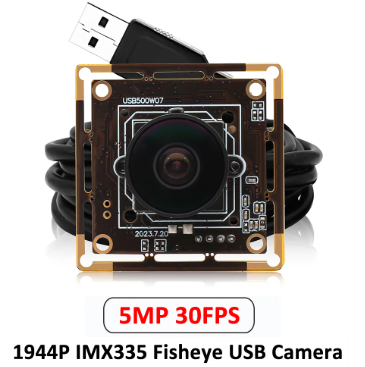

ELP 5MP USB Camera Module Wide Angle Fisheye Lens 1944P 30fps High Speed Camera IMX335 UVC HD Mini PC Camera

The ELP 5MP USB camera module is a compact, high-performance imaging solution designed for embedded systems, industrial vision, robotics, and surveillance applications. Featuring a Sony IMX335 CMOS sensor and wide-angle fisheye lens options, this USB camera delivers high-resolution imaging up to 2592×1944 at 30 frames per second.

With its plug-and-play USB interface and UVC compatibility, it is easy to integrate into Windows, Linux, macOS, and Android systems without additional driver installation.

High-Resolution Imaging Performance

At the core of this camera module is the 1/2.8-inch Sony IMX335 sensor, known for its excellent image clarity, sensitivity, and low-light performance.

Key imaging capabilities include:

• 5MP resolution up to 2592 × 1944 pixels

• Smooth video output at 30FPS in full resolution

• Support for MJPEG and YUY2 formats

• Adjustable lower-resolution modes for flexible frame rate optimization

This makes it suitable for both high-detail image capture and real-time video streaming applications.

Wide-Angle and Fisheye Lens Options

One of the standout features of this camera module is its wide-angle and fisheye lens configurations. Depending on the model, the field of view (FOV) can range from approximately 76° to over 120°.

These lens options provide:

• Ultra-wide scene coverage

• Reduced blind spots in monitoring systems

• Enhanced spatial awareness for robotics and AI vision

• Optional fisheye distortion for panoramic imaging applications

Such flexibility allows developers to choose the most appropriate lens based on their application requirements.

High-Speed USB 2.0 Interface with UVC Support

The camera uses a high-speed USB 2.0 interface, ensuring stable and efficient data transmission. It is fully UVC-compliant, which means:

• No additional drivers required

• Plug-and-play functionality

• Compatibility with major operating systems

Supported platforms include Windows, Linux, macOS, and Android systems, making it highly versatile for embedded development.

Compact Design for Embedded Applications

Designed with industrial integration in mind, the camera module features a compact PCB board size of approximately 38mm × 38mm (with 32mm compatibility options).

Its small form factor makes it ideal for:

• Embedded vision systems

• Robotics and automation projects

• Smart surveillance devices

• AI edge computing platforms

• Portable imaging equipment

Low power consumption further enhances its suitability for battery-powered and mobile applications.

Adjustable Image Control Features

The camera module includes multiple software-adjustable parameters, allowing users to fine-tune image output according to environmental conditions.

Adjustable settings include:

• Brightness and contrast

• Saturation and sharpness

• White balance and gamma

• Exposure control

• Backlight compensation

These features ensure stable and optimized image quality across different lighting environments.

Key Technical Specifications

• Sensor: Sony IMX335 CMOS (1/2.8”)

• Maximum Resolution: 2592 × 1944 (5MP)

• Frame Rate: Up to 30FPS @ 2592×1944

• Lens Type: Wide-angle / fisheye M12 lens options

• Interface: USB 2.0 high-speed

• Video Formats: MJPEG / YUY2

• Power Supply: 5V USB bus power

• Operating System Support: Windows / Linux / macOS / Android (UVC)

Application Scenarios

This USB camera module is widely used across multiple industries due to its flexibility and performance.

Industrial Vision Systems

Used for quality inspection, defect detection, and production line monitoring.

Robotics and AI Systems

Supports object recognition, navigation, and environmental perception.

Surveillance and Security

Ideal for compact surveillance devices with wide field-of-view coverage.

Smart Devices and IoT

Integrated into smart home systems, video doorbells, and edge AI devices.

Education and Research

Used in computer vision experiments, teaching platforms, and prototyping.

Advantages of the ELP 5MP USB Camera Module

• High-resolution 5MP imaging with Sony IMX335 sensor

• Wide-angle and fisheye lens flexibility

• Easy plug-and-play USB connectivity

• Strong compatibility with embedded systems

• Compact size for space-constrained applications

• Stable performance with low power consumption

Conclusion

The ELP 5MP USB camera module with wide-angle fisheye lens offers a powerful combination of high-resolution imaging, flexible field-of-view options, and easy system integration. Its IMX335 sensor, UVC compatibility, and compact design make it an excellent choice for developers working on industrial vision, robotics, surveillance, and AI-powered applications.
