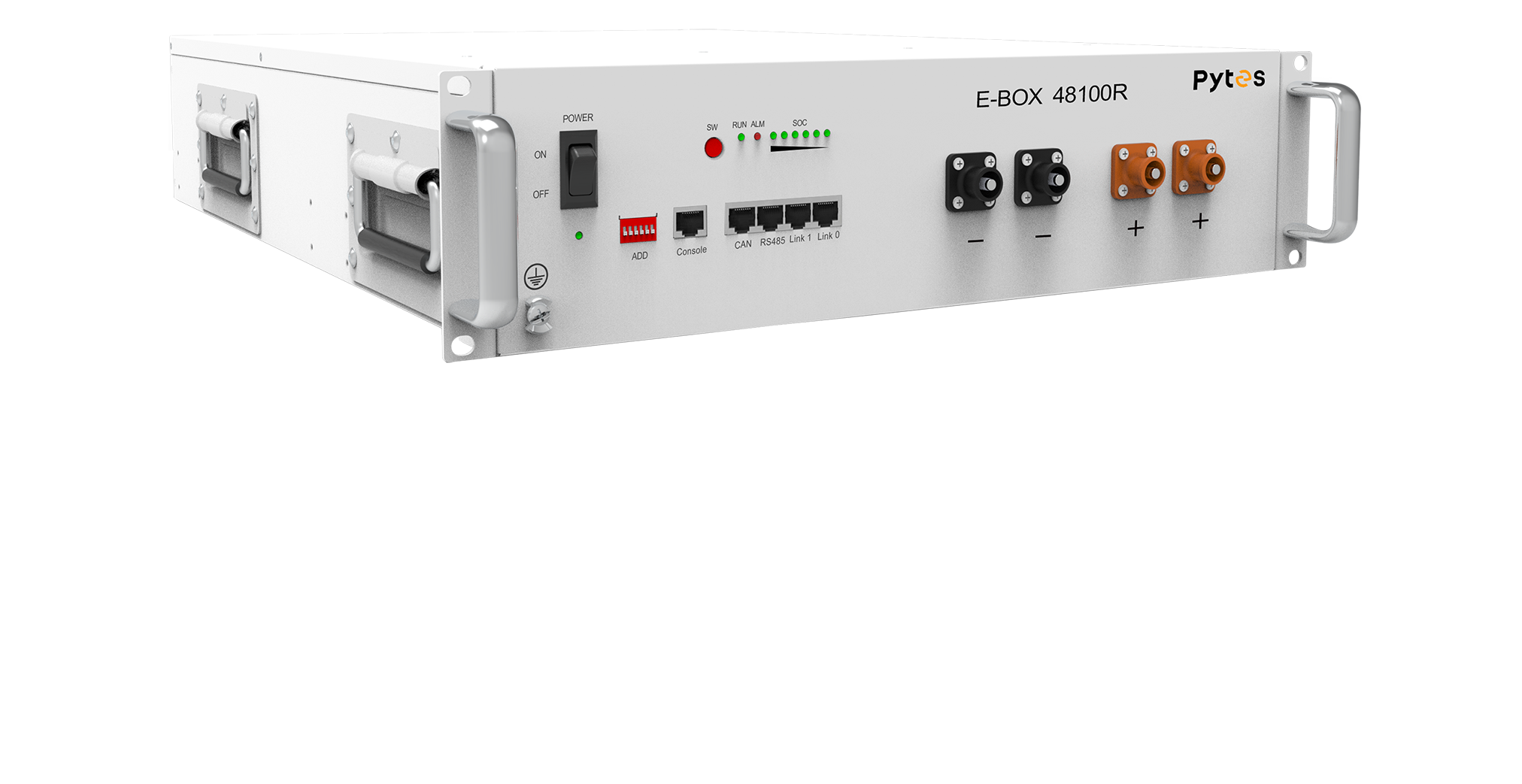

E-Box 48100R
The Pytes E‑Box 48100R is a high-performance, reliable, and scalable residential energy storage solution designed for solar systems, home backup power, and self-consumption applications.
https://www.pytes.au/residential-ess-batteries/e-box-48100r.html
The advanced solar battery storage delivers safer and more efficient energy storage. Compatible with all leading inverters, E-Box-48100R is a smart choice for battery replacement, expansion or a new installation. The solar battery storage which enable homeowners to store energy generated from renewable sources, reducing their reliance on the grid.
The Pytes E‑Box 48100R is a high-performance, reliable, and scalable residential energy storage solution designed for solar systems, home backup power, and self-consumption applications. Featuring advanced LiFePO₄ (Lithium Iron Phosphate) cells and an intelligent Battery Management System (BMS), it delivers exceptional safety, long cycle life, and high efficiency, compatible with a wide range of inverters to provide stable and lasting power for modern homes.
Key Features & Benefits:
-
Efficient Energy Storage & Delivery: 5.12 kWh nominal capacity with 51.2 V output, supporting up to ~100 A continuous charge/discharge for daily power and backup needs.
-
Long Life & High Efficiency: Tier-1 automotive-grade LiFePO₄ cells, over 6000 cycles at 90% DOD, with ≥95% charge/discharge efficiency and a design lifespan of up to 20 years.
-
Safe & Reliable: Advanced dual-MCU BMS provides multi-layer protection to ensure safe operation under various conditions.
-
Flexible Compatibility: Works with major inverter brands such as SMA, Victron, and Growatt; supports wall, rack, or bracket installation.
-
Expandable Design: Supports up to 96 units in parallel, allowing easy capacity scaling to meet growing energy demands.
Typical Applications:
Residential solar energy storage, self-consumption optimization, emergency backup power, off-grid systems, peak shaving, and time-of-use energy management—providing homes and small businesses with clean, efficient, and smart energy solutions.
