With the rapid development of consumer drones, battery performance has become one of the most important factors affecting flight time, safety, and overall user experience. A high-quality battery management system (BMS) is not only responsible for power distribution but also plays a critical role in battery protection, energy efficiency, and intelligent communication between the battery and drone system.

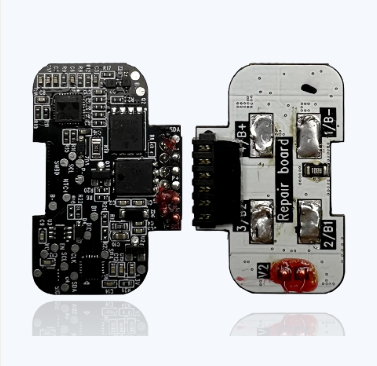

The Intelligent Drone Battery Management PCBA Solution is a high-energy-density power management board specially designed for Mini 2 series drones. Based on advanced BMS technology and precision circuit design, this solution provides efficient battery control, comprehensive protection, and stable power output for the original 2250mAh / 7.7V battery specification.

By optimizing energy utilization and improving battery safety management, this PCBA solution helps drone manufacturers and battery suppliers achieve faster mass production, reliable performance upgrades, and enhanced user flight experiences.

High Energy Density Design Maximizes Drone Flight Time

For compact drones, battery weight and energy efficiency directly determine flight performance.

The intelligent battery management PCBA adopts a low-loss, low-resistance BMS circuit design to reduce unnecessary power consumption during energy transmission. By improving battery discharge efficiency, the system helps maximize the available energy from the 2250mAh battery cells.

Key benefits include:

• Reduced power transmission loss

• Higher energy utilization efficiency

• Improved battery endurance

• Lightweight design suitable for Mini 2 drone platforms

With optimized PCB layout and carefully selected electronic components, the PCBA minimizes its own power consumption while maintaining stable performance, helping drones achieve the original standard flight duration of approximately 31 minutes.

Comprehensive Intelligent Battery Protection System

Drone batteries operate under complex conditions, including high-speed movement, temperature changes, and sudden current fluctuations. Reliable protection technology is essential for preventing battery damage and ensuring flight safety.

The intelligent BMS system integrates multiple protection functions to create a complete battery safety solution.

Overcharge and Over-Discharge Protection

The PCBA continuously monitors battery cell voltage in real time.

During charging:

• Controls the maximum voltage limit

• Prevents battery overcharging

• Protects cell health

During discharge:

• Detects low-voltage conditions

• Activates protection mechanisms

• Prevents permanent battery damage

This intelligent voltage management helps extend battery service life and maintain stable performance.

Overcurrent and Short-Circuit Protection

Unexpected current changes can create safety risks during drone operation.

The BMS system provides rapid current monitoring and protection:

• Detects abnormal current conditions within milliseconds

• Quickly disconnects output when necessary

• Prevents damage caused by short circuits or overload situations

This feature improves operational safety during flight and charging processes.

Temperature Monitoring and Protection

Battery performance is highly affected by environmental temperature.

The PCBA includes intelligent temperature monitoring to support safe operation under different conditions.

Charging temperature range:

5℃–40℃

Protection strategies include:

• Reducing power output under high temperatures

• Preventing charging under unsuitable low temperatures

• Adjusting charging current according to environmental conditions

This allows the drone battery system to operate more reliably in different climates.

Intelligent Cell Balancing Improves Battery Lifespan

Battery cells may develop voltage differences during repeated charging and discharging cycles.

The built-in cell balancing function helps maintain consistent voltage between individual cells.

Advantages include:

• Improved battery capacity utilization

• More balanced charging performance

• Extended battery cycle life

• Improved long-term reliability

This technology is especially important for drone batteries, where stable power output directly affects flight performance.

Original-Level Compatibility for Easy Replacement

The intelligent drone battery management PCBA is designed to match the original Mini 2 series battery structure.

The solution provides:

• Compatible hardware interface design

• Matching size specifications

• Plug-and-play installation

• No modification required to drone housing

This makes it suitable for battery manufacturers and repair solution providers looking for reliable replacement or upgraded battery management solutions.

Real-Time Communication with Drone Flight Systems

Modern drones require intelligent communication between the battery and flight controller.

The PCBA integrates standard communication protocols to transmit important battery information in real time, including:

• Remaining power level

• Battery voltage

• Operating temperature

• Battery health status (SOH)

This enables the drone system to accurately monitor battery conditions and optimize flight management.

Industrial-Grade Components Ensure Stable Performance

Reliability is a key requirement for drone battery systems.

The PCBA uses industrial-grade BMS chips and high-quality electronic components designed for:

• Wide temperature operation

• Vibration resistance

• Electromagnetic interference resistance

• Long-term stable operation

The manufacturing process includes:

• High-standard PCB production

• Precision SMT assembly technology

• Protective three-proof coating treatment

These technologies improve resistance against:

• Moisture

• Corrosion

• Oxidation

• Environmental stress

As a result, the PCBA maintains stable performance even in demanding flight conditions.

Fast Charging Support Reduces Downtime

For drone users and commercial operators, charging efficiency directly affects productivity.

The intelligent battery management PCBA supports mainstream fast-charging technologies, including:

• QC fast charging protocol

• USB PD charging protocol

Maximum charging power:

Up to 29W

Combined with intelligent charging control, the system can:

• Shorten charging time

• Improve charging efficiency

• Protect battery health

The charging management system automatically adjusts charging current according to temperature conditions between 5℃ and 40℃, achieving a balance between charging speed and battery lifespan.

Applications of Intelligent Drone Battery Management PCBA

This high-performance BMS PCBA solution is suitable for various drone-related applications, including:

Consumer Drone Battery Manufacturing

Provides a reliable battery management platform for Mini 2 series compatible batteries.

Drone Battery Replacement Solutions

Supports manufacturers developing replacement batteries with original-level compatibility.

Drone Product Upgrades

Helps improve battery safety, endurance, and intelligent control performance.

OEM/ODM Drone Battery Production

Provides a scalable solution for companies requiring customized battery management systems.

Why Choose an Intelligent BMS PCBA Solution for Drone Batteries?

Compared with traditional battery protection boards, this intelligent PCBA solution offers:

Higher Energy Efficiency

Optimized circuit design improves battery utilization and extends flight time.

Stronger Safety Protection

Multiple protection functions reduce risks during charging and operation.

Better Compatibility

Designed specifically for Mini 2 series drone battery systems.

Longer Battery Life

Smart balancing and temperature management improve cycle performance.

Easier Mass Production

Reliable design and mature technology support large-scale manufacturing.

Conclusion

The Intelligent Drone Battery Management PCBA Solution for Mini 2 Series Drones provides a complete power management solution that combines high energy efficiency, intelligent protection, fast charging support, and reliable system compatibility.

Through advanced BMS technology, precision circuit design, and industrial-grade manufacturing processes, this PCBA helps drone manufacturers and battery suppliers deliver safer, longer-lasting, and higher-performance battery products.

As drone applications continue expanding in photography, inspection, logistics, and industrial operations, intelligent battery management technology will become a key factor in improving flight reliability and overall system performance.
