Diesel Engine Driven

In industrial and construction environments, reliable compressed air systems are essential for powering pneumatic tools, supporting production lines, and ensuring uninterrupted field operations. Among the most practical solutions for mobile and off-grid applications are diesel engine driven air compressors, which provide independent, high-efficiency air supply without reliance on external electricity.

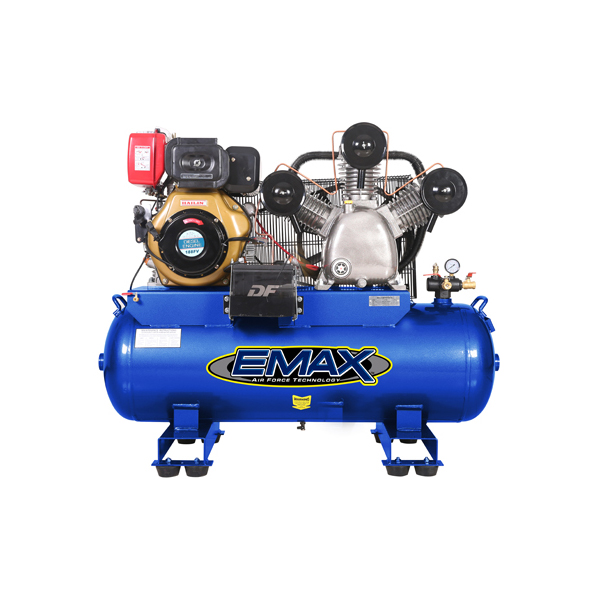

The TB series, including models such as TB-4070DJ, TB-40100D, TB-70100DJ, TB-70100D, TB-110160DJ, and TB-110160D, is designed to meet a wide range of operational demands from light-duty workshops to heavy industrial usage.

1. Overview of TB Series Diesel Air Compressors

The TB series is built around a robust diesel engine platform, offering stable air delivery, strong pressure output, and adaptability to various working environments. Each model is engineered with different horsepower levels and tank capacities to match specific application requirements.

Key engine configurations include:

• 4HP compact models for light-duty applications

• 7HP mid-range systems for standard industrial use

• 11HP high-output units for demanding operations

This tiered structure allows users to select the most suitable compressor based on workload intensity and air consumption needs.

2. Core Technical Structure

Each TB model is designed with a focus on durability, thermal stability, and efficient air compression performance.

Engine Power and RPM

• 4HP models operate at 1100 RPM or 850 RPM depending on configuration

• 7HP models are optimized at 1000 RPM for balanced output

• 11HP models operate at 850 RPM for high torque stability

This variation ensures optimal fuel efficiency while maintaining consistent air output under different load conditions.

3. Cylinder Configuration and Compression Efficiency

The TB series uses precision-engineered cylinders to ensure stable compression cycles.

• 65mm cylinders in 4HP models

• 80mm cylinders in 7HP models

• 90mm cylinders in 11HP models

Cylinder configurations vary between 2 and 3 units depending on model design. This allows the system to balance air delivery capacity and mechanical efficiency, reducing wear while maintaining output consistency.

4. Air Tank Capacity and Storage Stability

Air storage plays a critical role in maintaining stable pressure output during peak usage.

• 100-liter tanks (26.32 gallons) in 4HP and 7HP models

• 160-liter tanks (42.11 gallons) in 11HP models

Larger tank capacity allows for longer continuous operation cycles, reducing compressor start-stop frequency and improving overall system lifespan.

5. Air Delivery Performance

Air delivery is a key performance indicator for any compressor system. The TB series demonstrates strong output across all models:

• TB-4070DJ: 335 L/min (11.84 CFM)

• TB-40100D: 405 L/min (14.31 CFM)

• TB-70100DJ / TB-70100D: 622 L/min (21.98 CFM)

• TB-110160DJ: 973 L/min (34.38 CFM)

• TB-110160D: 1215 L/min (42.93 CFM)

This wide performance range makes the TB series suitable for applications ranging from small workshops to heavy-duty industrial environments.

6. Pressure Stability and Working Output

All TB series models are designed to maintain a consistent maximum working pressure of:

• 8 bar (115 psi)

This stable pressure output ensures compatibility with most pneumatic tools and industrial air systems, including drilling, painting, assembly, and construction equipment.

7. Weight and Structural Design

Mechanical stability is essential for diesel-driven equipment, especially in mobile applications.

• Weight ranges from 128 kg to 234 kg depending on model

• Reinforced frame structure for vibration resistance

• Compact packaging design for transportation efficiency

The structural design ensures durability under continuous operation in harsh environments such as construction sites, mining areas, and remote industrial zones.

8. Application Scenarios

The TB diesel air compressor series is widely used in:

Construction Industry

• Roadwork tools

• Jackhammers and pneumatic drills

• On-site maintenance operations

Manufacturing Workshops

• Assembly line pneumatic systems

• Spray painting and surface treatment

• Automated tooling systems

Agriculture and Remote Operations

• Irrigation system maintenance

• Field equipment servicing

• Off-grid machinery support

The independence from electrical power makes these compressors especially valuable in remote or unstable power environments.

9. Container Loading and Logistics Efficiency

For global distribution and industrial procurement, logistics efficiency is an important factor.

• 20’ container loading: 12 to 60 units depending on model

• 40” container loading: 52 to 124 units depending on configuration

This flexibility allows distributors and project contractors to optimize shipping costs and storage planning.

10. Why TB Series Stands Out in Industrial Air Systems

The TB series is engineered with a focus on three key principles:

1. Reliability

Diesel-powered operation ensures continuous performance without dependence on external power grids.

2. Efficiency

Optimized RPM and cylinder design improve fuel utilization and air output balance.

3. Scalability

Multiple models allow users to scale air supply capacity according to project requirements.

Conclusion

The TB-4070DJ through TB-110160D diesel engine driven air compressor series provides a comprehensive solution for industrial-grade compressed air needs. With a wide range of horsepower options, stable pressure output, and strong air delivery performance, these systems are designed to meet the demands of modern industrial, construction, and agricultural operations.

Whether used for small workshop tasks or large-scale industrial projects, the TB series offers a reliable, efficient, and adaptable compressed air solution that supports long-term operational stability.
