Color steel tile forming equipment

Key Advantages

• Continuous High-Speed Production: The line can operate at forming speeds of 20–60 m/min and uses a PLC-controlled chase cutting system for accurate, continuous production.

• Coating-Friendly Roller Design: Precision-made GCr15 rollers are ground, polished, and hardened to provide smooth sheet movement while helping protect painted and galvanized surfaces from scratches.

• Multiple Profile Capabilities: The forming system can be configured for trapezoidal, corrugated, and step-tile profiles, supporting different roofing and building envelope requirements.

• Integrated Automated Processing: Automatic coil uncoiling, sheet feeding, punching, roll forming, length tracking, cutting, and finished-product stacking are combined into one production line.

Main Equipment Configuration

Hydraulic Uncoiler with Loading Car

The hydraulic uncoiler is available with 3-ton or 5-ton capacity options and is designed to provide stable, controlled feeding of color-coated or galvanized steel coils. A loading car can assist with coil positioning and handling.

Sheet Guiding and Feeding System

The precision guiding and feeding section aligns the incoming steel strip before it enters the forming mill. Accurate feeding helps maintain consistent profile dimensions throughout continuous production.

20-Station Roll Forming Mill

The main forming machine uses 20 forming stations to gradually shape the flat steel sheet into the required roofing profile. Progressive forming helps distribute deformation across multiple passes for controlled profile production.

Flying Shear Cutting System

A tracking cutting mechanism allows finished panels to be cut according to programmed lengths while the production line continues operating. This reduces unnecessary interruptions during continuous forming.

Siemens / Delta PLC Control

The electronic control system provides programmable management of production length, quantity, cutting operations, and batch processing. Siemens or Delta PLC configurations can be selected according to project requirements.

Automatic Stacking Unit

After cutting, the discharge system collects and stacks finished roofing panels in an organized manner. This helps simplify subsequent handling and reduces the risk of unnecessary surface contact during collection.

Applications Across Building Projects

The color steel tile roll forming machine is designed for manufacturing formed steel panels used in a variety of construction environments.

Industrial and Commercial Buildings

The equipment can produce roofing sheets, wall cladding, and eave panels for factories, warehouses, logistics facilities, and other commercial structures.

Modular and Temporary Structures

Profiled steel panels can be used for lightweight roof and wall systems in prefabricated buildings, temporary site facilities, modular structures, and emergency shelters.

Agricultural and Architectural Applications

The formed panels are also suitable for agricultural buildings, farm sheds, greenhouse-related structures, and architectural partitions where profiled steel sheets are required.

Technical Specifications

How Does the Roll Forming Line Protect Color-Coated Steel?

Surface quality is particularly important when processing pre-painted and galvanized steel. The forming rollers are manufactured from GCr15 precision steel and undergo polishing and hardening processes to create a smooth contact surface.

This roller configuration helps guide the material through successive forming stations while minimizing unnecessary friction that could leave marks on the coated sheet.

Can One Machine Produce Different Roof Tile Profiles?

A conventional roll forming machine is normally configured around a specific roof tile profile. When a project requires more than one profile, a customized solution can be considered.

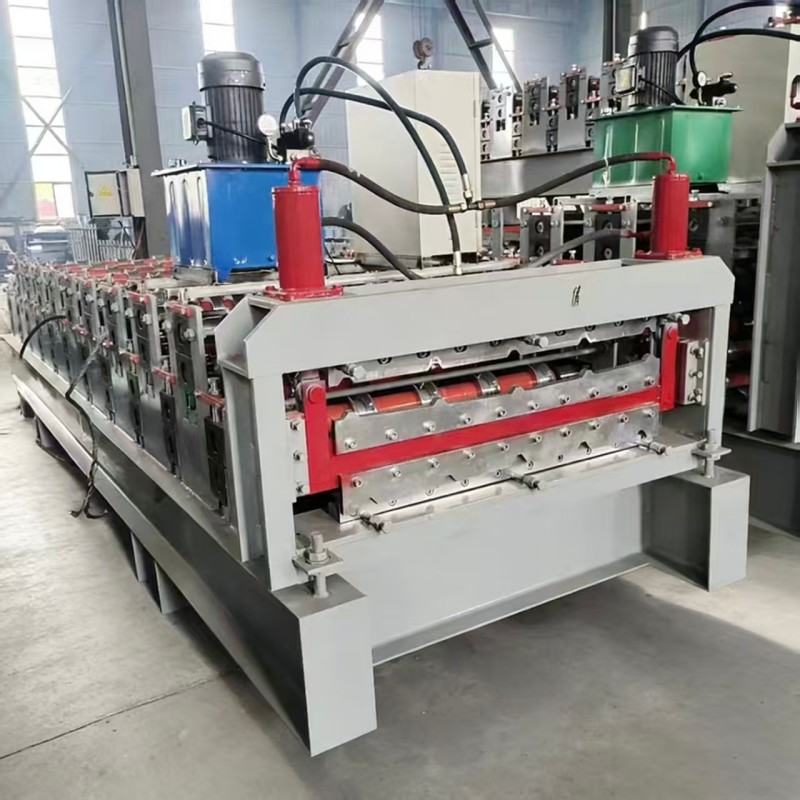

For example, a double-deck roll forming machine can be designed with two forming configurations within one machine footprint, allowing two different tile patterns to be produced according to the equipment design.

International Installation and Technical Support

For overseas projects, equipment installation and commissioning can be supported by a qualified engineering team. Services can include machine setup, production-line commissioning, and operator training.

Technical guidance can also be provided throughout the equipment's service life, helping production teams understand machine operation, adjustment, and routine use.

Built for Efficient Steel Panel Production

Combining continuous roll forming, automated length control, precision rollers, PLC operation, and automatic stacking, this color steel tile roll forming machine provides an integrated approach to profiled steel panel manufacturing.

With adjustable production parameters and configurable equipment options, the line can be adapted to different material specifications and roofing or wall-panel production requirements.
