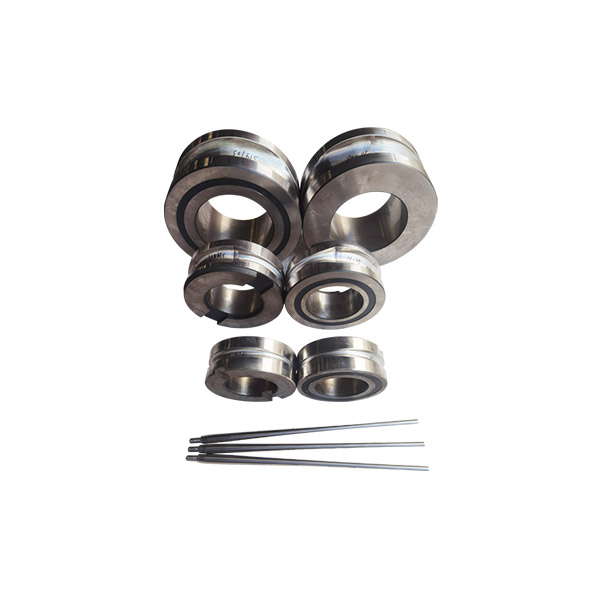

Cold rolling dies

Cold drawing dies are essential tooling components for precision metal tube forming. They are used to reduce and shape metal tubes by drawing the material through a specially designed die, helping achieve consistent dimensions, smooth surfaces, and improved mechanical properties. These dies are widely applied to steel, copper, aluminum, nickel alloys, and other metal tube manufacturing processes.

Manufactured from selected high-performance tooling materials, our cold drawing dies are precision-machined and heat-treated to provide reliable performance under demanding production conditions. Their combination of dimensional accuracy, wear resistance, pressure resistance, and durability helps manufacturers maintain stable drawing performance and reduce tooling-related downtime.

Product Features

High-Precision Manufacturing: Advanced machining processes help maintain accurate die dimensions and tight tolerances, supporting cold-drawn tubes with different size and precision requirements.

Excellent Wear Resistance: Special surface treatments improve resistance to friction and wear, allowing the dies to withstand repeated drawing operations and maintain consistent performance.

High Strength and Pressure Resistance: The dies are designed to handle substantial drawing forces and continuous workloads, helping minimize premature tooling failure and production interruptions.

Good Temperature Resistance: High-alloy materials provide reliable performance under elevated-temperature conditions associated with demanding cold drawing operations.

Extended Service Life: Optimized material selection, machining, and heat treatment contribute to stable long-term operation and help reduce the frequency of die replacement.

Application Areas

Steel Industry: Used for manufacturing precision cold-drawn steel tubes, pipes, wires, and related metal products.

Automotive Industry: Suitable for producing precision metal tubes and components used in automotive applications.

Machinery Industry: Applied to the production of mechanical tubing, precision parts, and other formed metal components.

Construction Industry: Used for manufacturing structural steel tubes, decorative tubes, and other construction-related metal products.

Electronics Industry: Suitable for producing small-diameter and precision tubes used in electronic and specialized equipment.

Cold Drawing Die Parameter Table

The die specifications can be adjusted according to tube material, finished dimensions, drawing process, and production requirements. Custom tooling is available for different tube profiles and precision processing applications.
