Cold bending forming equipment for seismic support

The seismic support is mainly used for fixing underground parking lots, ventilation ducts in shopping malls, cable trays, and pipelines.

The seismic support is mainly used for fixing underground parking lots,
ventilation ducts in shopping malls, cable trays, and pipelines.

The automatic anti-vibration support equipment consists of the following
components: material feeding frame, leveling and pulling machine, high-speed
punch press, high-speed servo pulling machine, high-speed cold bending forming
machine, and servo tracking shearing machine.

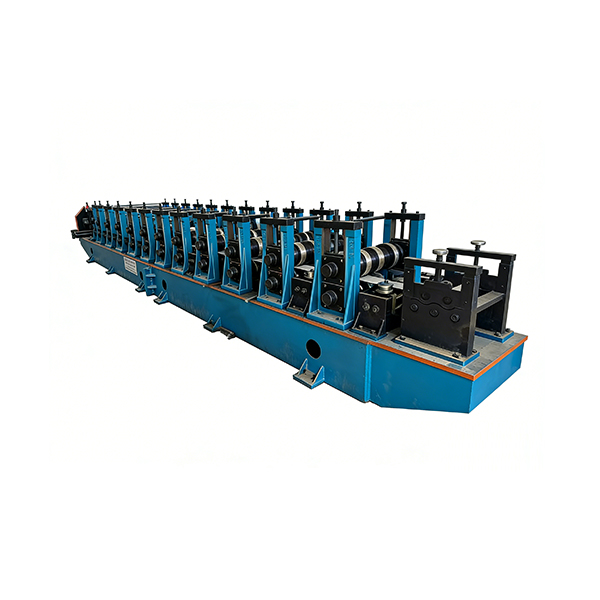

seismic support forming equipment

Technical parameter

Serial Number

Item

Unit

Parameter

1

Raw material specifications

type

Cold strip, hot strip, galvanized strip steel

magnitude

Mpa

≤350

thickness

mm

1.5-3

Inner diameter of the coil

mm

500,600

weight of coil

T

3

2

plate width

mm

100-320

3

Production line speed

m/min

30-50

4

roller material

CR12mov

5

roller drive

external transmission

6

operating system

high speed chase system

7

total motor power

Kw

55KW

8

electric control system

PLC automatic control system

9

number of forming passes

22 questions
