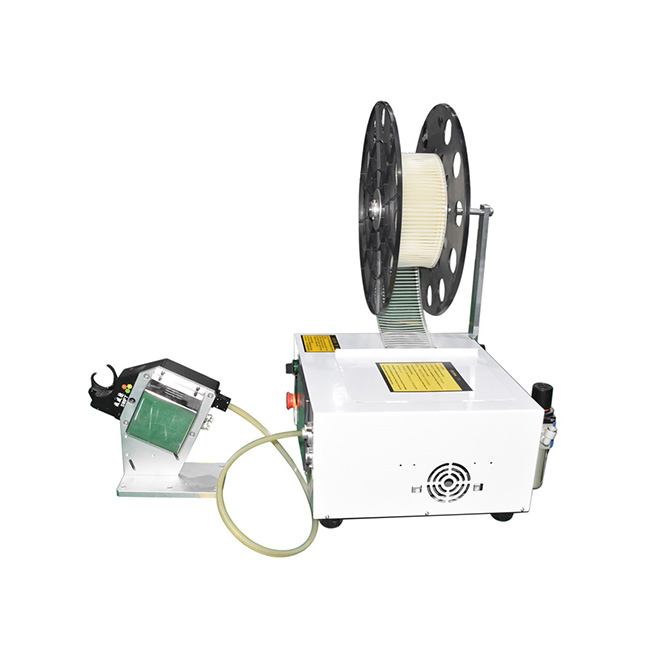

Auatomatic reel cable tie machine with fixed type

The Swift fixed integrated cable tie machine is a high-efficiency automation device designed for large-scale wire harness bundling.

Parameters：

Model	SWT25100FC
Cable Tie Spec	2.5X 100 mm
Min binding Dia.	Ø2mm
Max binding Dia	Ø18mm
Tact Time	1.1s/PCS
Electric Power	Host AC 220V 50/60 Hz
	Gun DC 24V （Auto switch）
Pneumatic Pressure	5 Kg/ cm²
Size(The machine can put above on the assembly line)	Host:L655 XW467 XH230mm （Height of the tray containing material: 740）
	Gun	L260X H77 X T46mm
Weight	HostHoH	30 kg
	Gun	4.5kg

Model	SWT36200FC
Cable Tie Spec	3.6X 200 mm
Min binding Dia.	Ø15mm
Max binding Dia	Ø42mm
Tact Time	1.3s/PCS
Electric Power	Host AC 220V 50/60 Hz
	Gun DC 48V （Auto switch）
Pneumatic Pressure	5 Kg/ cm²
Size(The machine can put above on the assembly line)	Host:L710 XW470 XH230mm （Height of the tray containing material: 740）
	Gun	L299X H240X T149M
Weight	HostHoH	30 kg
	Gun	4.2kg
