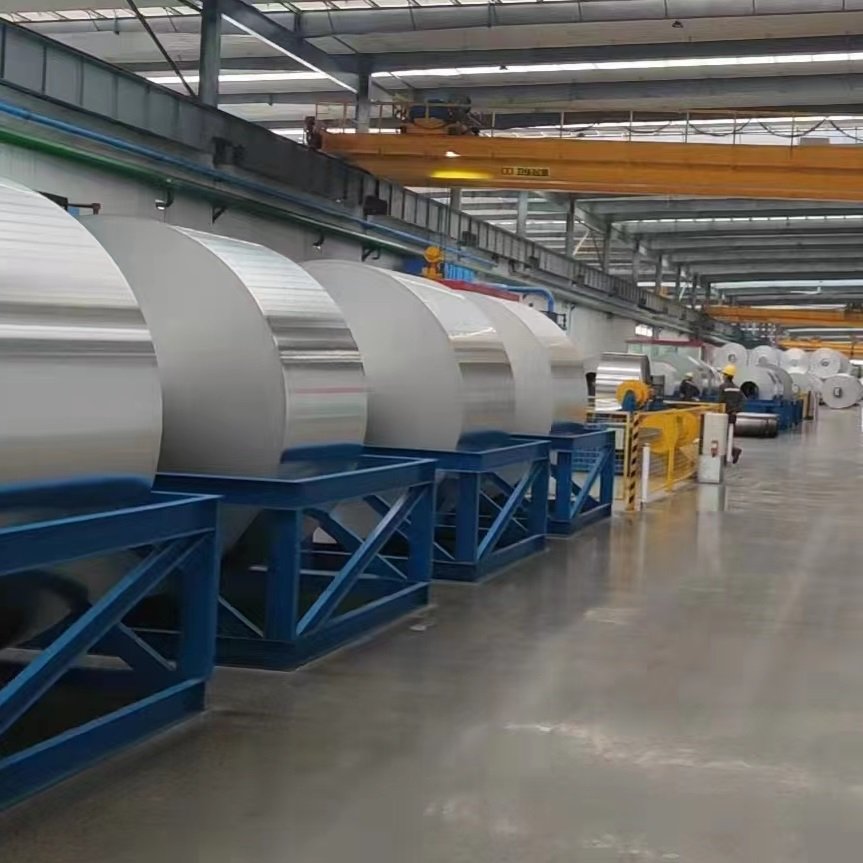

Aluminum Foil
Aluminum alloy is soft and usually alloyed with copper, zinc, magnesium, silicon, manganese and lithium to increase strength. When aluminum alloy is exposed to air, an anti-oxidant coating will be formed instantly to protect products. Aluminum alloy is one of the lightest metals. The application of products ranges from precision technology to daily commodities.
The advantage properties of aluminum alloy are light weight, excellent electrical and thermal conductivity, high corrosion resistance and ductility.
Aluminum alloy is soft and usually alloyed with copper, zinc, magnesium, silicon, manganese and lithium to increase strength. When aluminum alloy is exposed to air, an anti-oxidant coating will be formed instantly to protect products. Aluminum alloy is one of the lightest metals. The application of products ranges from precision technology to daily commodities.
Mechanical Properties
Tensile Strength, Ultimate
60 ~ 210 Mpa
Tensile Strength, Yield
20 ~ 180 Mpa
Hardness, Brinell
20 – 65
Product Specification and Size :
Standard Specification: GB/T 3198, EN 546
|
Alloy and Temper |
|
|
Alloy |
Temper |
|
1xxx: 1050, 1051A, 1060, 1100, 1145, 1235, 1200 |
O, H14, H16, H18, H19, H22, H24, H26 |
|
3xxx: 3003 |
|
|
8xxx: 8011, 8011A, 8079 |
O, H18, H19, H22, H24, H26 |
Alloy Designation (For Reference)
Comparison of Alloy Designations for Aluminum Products
|
Alloy Series |
Chinese Standard |
American Standard |
European Standard |
|
1xxx Series |
1050 |
– |
– |
|
1050A |
– |
EN AW-1050A |
|
|
1060 |
1060 |
– |
|
|
1100 |
1100 |
– |
|
|
1145 |
1145 |
– |
|
|
1200 |
– |
EN AW-1200 |
|
|
1235 |
1235 |
EN AW-1235 |
|
|
3xxx Series |
3003 |
3003 |
EN AW-3003 |
|
8xxx Series |
8011 |
– |
– |
|
8011A |
– |
EN AW-8011A |
|
|
8079 |
– |
EN AW-8079 |
Temper Designation (For Reference)
|
Temper |
Definition |
|
O |
Annealed |
|
H14 |
Strain Hardened, 1/2 Hard |
|
H22 |
Strain Hardened and Partially Annealed, 1/4 Hard |
|
H28 |
Strain Hardened and Partially Annealed, Full Hard |
Available Size Range
|
Dimension |
Range |
|
Thickness |
0.006 ~ 0.2 mm |
|
Width |
200 ~ 1,800 mm |
– Surface Condition:
One side bright, the other side matter (for double rolled)
Two sides bright (for single rolled)
– Surface Treatment: Lubrication, Lamination, Coating
– Core Type and Size :
Type: Aluminum, Sheel, Fiber
Core ID: 75mm, 76.2mm, 150mm, 152.4mm, 300mm, 400mm
Application
Aluminum and aluminum alloy foil can be widely applied in containers, packaging, household & institutional foil, food service products, foil building products, aluminum foil capacitors, aluminum foil finstock, aluminum foil strip conductor, aluminum honeycomb, aluminum foil printing plates, nameplates & product labels, caul stock, foil printing stocks, etc.
|
Type |
Application |
|
Food Packaging |
Beverage can end, can tap, cap stock, etc. |
|
Construction |
Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
|
Transportation |
Automobile parts, bus bodies, aviation and shipbuilding and air cargo containers, etc. |
|
Electronic Appliance |
Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
|
Consumer Goods |
Parasols and umbrellas, cooking utensils, sports equipment, etc. |
|
Other |
Military, color coated aluminum sheet |
Chemical Composition (For Reference)
Chemical Composition conforms to Chinese, American and European standard specification
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: |
Others: |
Al: Min. |
|
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
– |
0.05 |
0.03 |
0.03 |
– |
99.50 |
|
1050A |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
– |
0.05 |
0.03 |
0.03 |
– |
99.50 |
|
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
– |
0.05 |
0.03 |
0.03 |
– |
99.60 |
|
1100 |
0.95 Si + Fe |
0.05~0.20 |
0.05 |
– |
– |
0.10 |
– |
0.05 |
0.15 |
99.0 |
|
|
1200 |
1.00 Si + Fe |
0.05 |
0.05 |
– |
– |
0.10 |
0.05 |
0.05 |
0.15 |
99.0 |
|
|
1145 |
0.55 Si + Fe |
0.05 |
0.05 |
0.05 |
– |
0.05 |
0.03 |
0.03 |
– |
99.45 |
|
|
1235 |
0.65 Si + Fe |
0.05 |
0.05 |
0.05 |
– |
0.10 |
0.06 |
0.03 |
– |
99.35 |
|
|
3003 |
0.60 |
0.70 |
0.05~0.20 |
1.0~1.5 |
– |
– |
0.10 |
– |
0.05 |
0.15 |
remainder |
|
8011 |
0.5~0.9 |
0.6~1.0 |
0.10 |
0.20 |
0.05 |
0.05 |
0.10 |
0.08 |
0.05 |
0.15 |
remainder |
|
8011A |
0.4~0.8 |
0.5~1.0 |
0.10 |
0.10 |
0.10 |
0.10 |
0.10 |
0.05 |
0.05 |
0.15 |
remainder |
|
8079 |
0.05~0.3 |
0.7~1.3 |
0.05 |
– |
– |
– |
0.10 |
– |
0.05 |
0.15 |
remainder |
