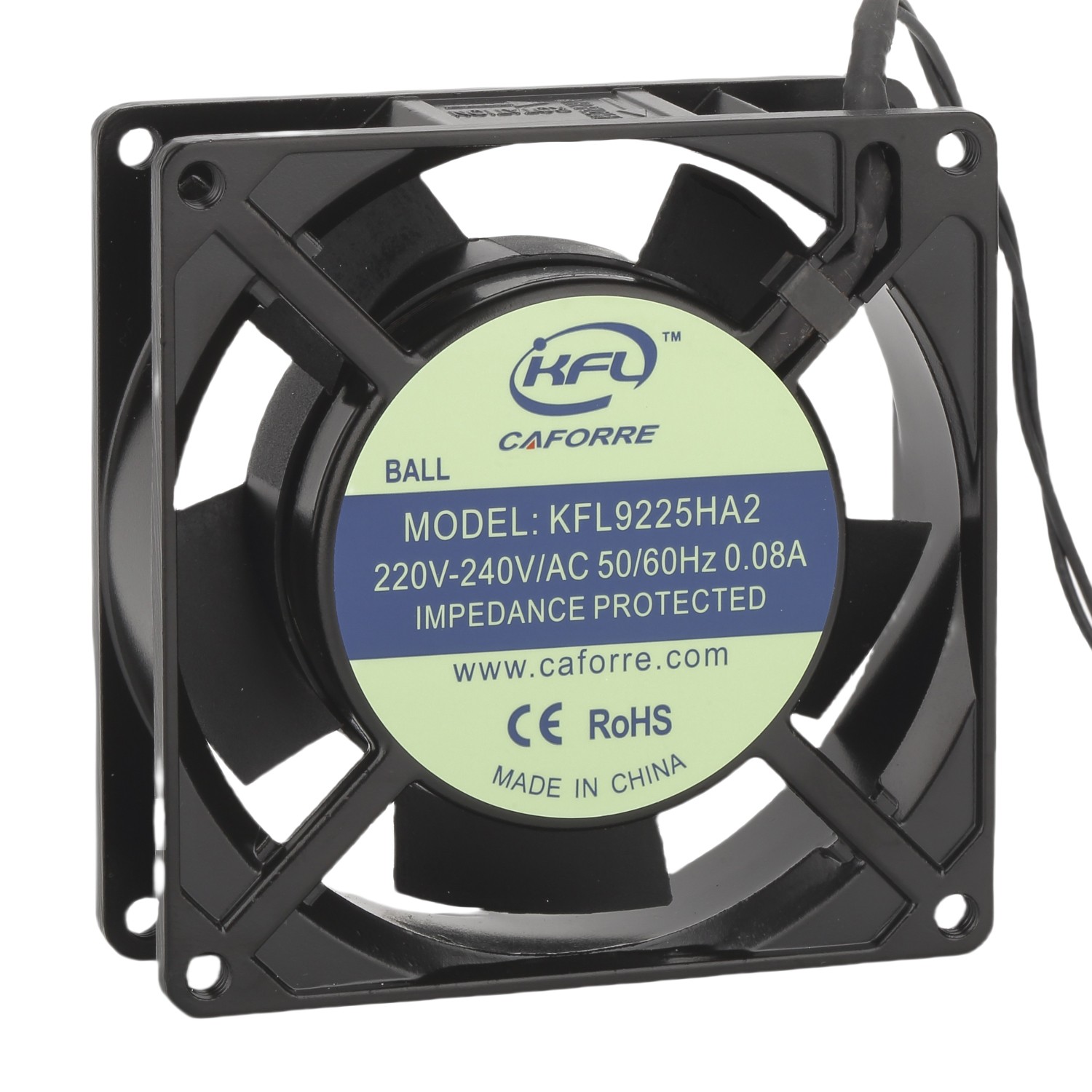

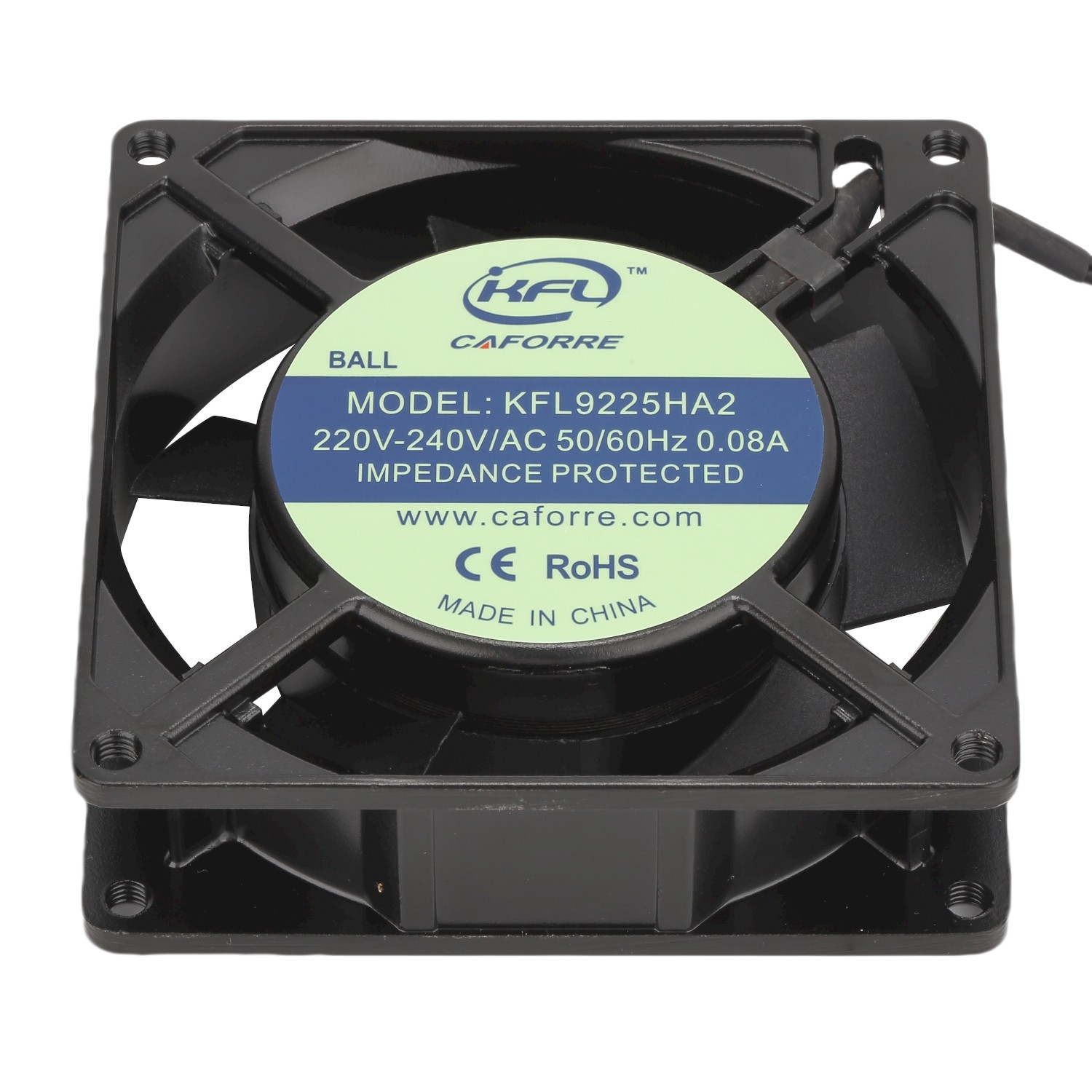

AC9225
Caforre offers AC axial compact fans 92x92x25mm for sale, ideal for compact cooling applications.This PBT impeller 92x92x25mm AC axial fan ensures durability and efficiency.
https://www.szcaforre.com/AC9225.html
Size:92×92×25mm
◆General Specification
◆Material:
Impeller: PBT UL 94V-0
Frame: Aluminilum Alloy
◆Lead Wires: UL Type
◆Motor Protection: Impedance Protected
◆Insulation Resistance:100MΩ Or Over With a DC 500V Megger
◆Dielectric Strength: AC 1500V 0.5mA 1S
◆Allowable Ambient Temperature Range: -10℃-+70℃(Operation)-30℃-+85℃(Storage)
Dimensions Drawing
P&Q Curve(At Rated Voltage)
Specifications
| Model | Bearing system |
Rated Voltage |
Operation Voltage Range |
Freq. | Rated Current |
Rated Speed |
Max Air Flow | Max Static Pressure | Noise | |||||||
| PART NO. | B/S | VDC | VDC | Hz | A | RPM | CFM | m/min | mmH₂O | Inch-H₂O | dBA | |||||
| KFL9225HA1SAL | Sleeve | 110 | 100-125 | 50/60 | 0.12/0.11 | 2300/2800 | 28/34 | 0.79/0.96 | 2.7/4.4 | 0.11/0.17 | 34/40 | |||||
| KFL9225MA1SAL | 100-125 | 50/60 | 0.14/0.13 | 1800/2300 | 22/28 | 0.62/0.79 | 1.9/2.7 | 0.07/0.11 | 28/34 | |||||||
| KFL9225HA1BAL | Ball | 100-125 | 50/60 | 0.12/0.11 | 2300/2800 | 28/34 | 0.79/0.96 | 2.7/4.4 | 0.11/0.17 | 34/40 | ||||||
| KFL9225MA1BAL | 100-125 | 50/60 | 0.14/0.13 | 1800/2300 | 22/28 | 0.62/0.79 | 1.9/2.7 | 0.07/0.11 | 28/34 | |||||||
| KFL9225HA2SAL | Sleeve | 220 | 200-240 | 50/60 | 0.07/0.06 | 2300/2800 | 28/34 | 0.79/0.96 | 2.7/4.4 | 0.11/0.17 | 34/40 | |||||
| KFL9225MA2SAL | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 22/28 | 0.62/0.79 | 1.9/2.7 | 0.07/0.11 | 28/34 | |||||||
| KFL9225HA2BAL | Ball | 200-240 | 50/60 | 0.07/0.06 | 2300/2800 | 28/34 | 0.79/0.96 | 2.7/4.4 | 0.11/0.17 | 34/40 | ||||||
| KFL9225MA2BAL | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 22/28 | 0.62/0.79 | 1.9/2.7 | 0.07/0.11 | 28/34 | |||||||
If you want another rpm or voltage ro functions which one in the list please contact us.
Notes 1: The catalog has detail information in the front page for the functions.
Notes 2:Product has a detail in the approvals.
Notes 3:Specifications are subject to change without notice.
