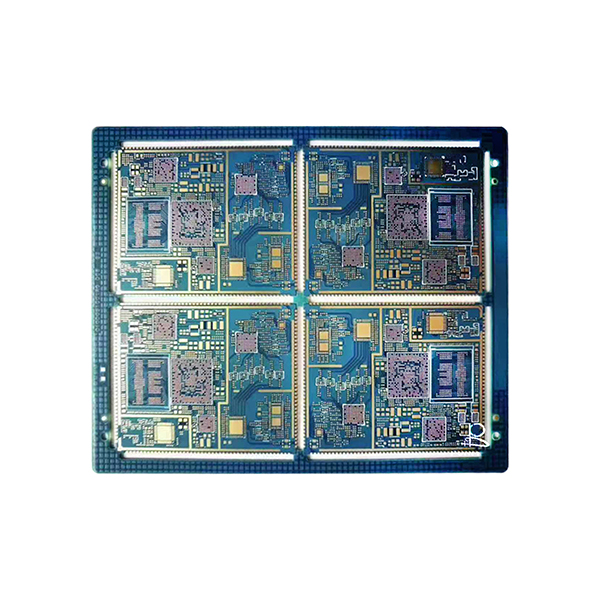

6 layers of half-hole plate
Product Name：6 layers of half-hole plate
Material：FR4
Surface Treatment：Sink gold
Craft：4 side half hole, blind buried hole
The number of layers：6layers
The thickness of the plate：1.2mm
| Product Name | 6 layers of half-hole plate |
| Material | FR4 |
| Color | Blue oil |
| Surface treatment | Sink gold |
| Craft | 4 side half hole, blind buried hole |
| The number of layers | 6layers |
| The thickness of the plate | 1.2mm |
| Copper is thick | 1OZ |
| Minimum aperture | 0.1mm |
| The minimum line distance | 0.05mm |
| The minimum line width | 0.05mm |
| The scope of the application | Bluetooth module, GPS module, WIFI module, optical module, 5G module |
