Product Introduction

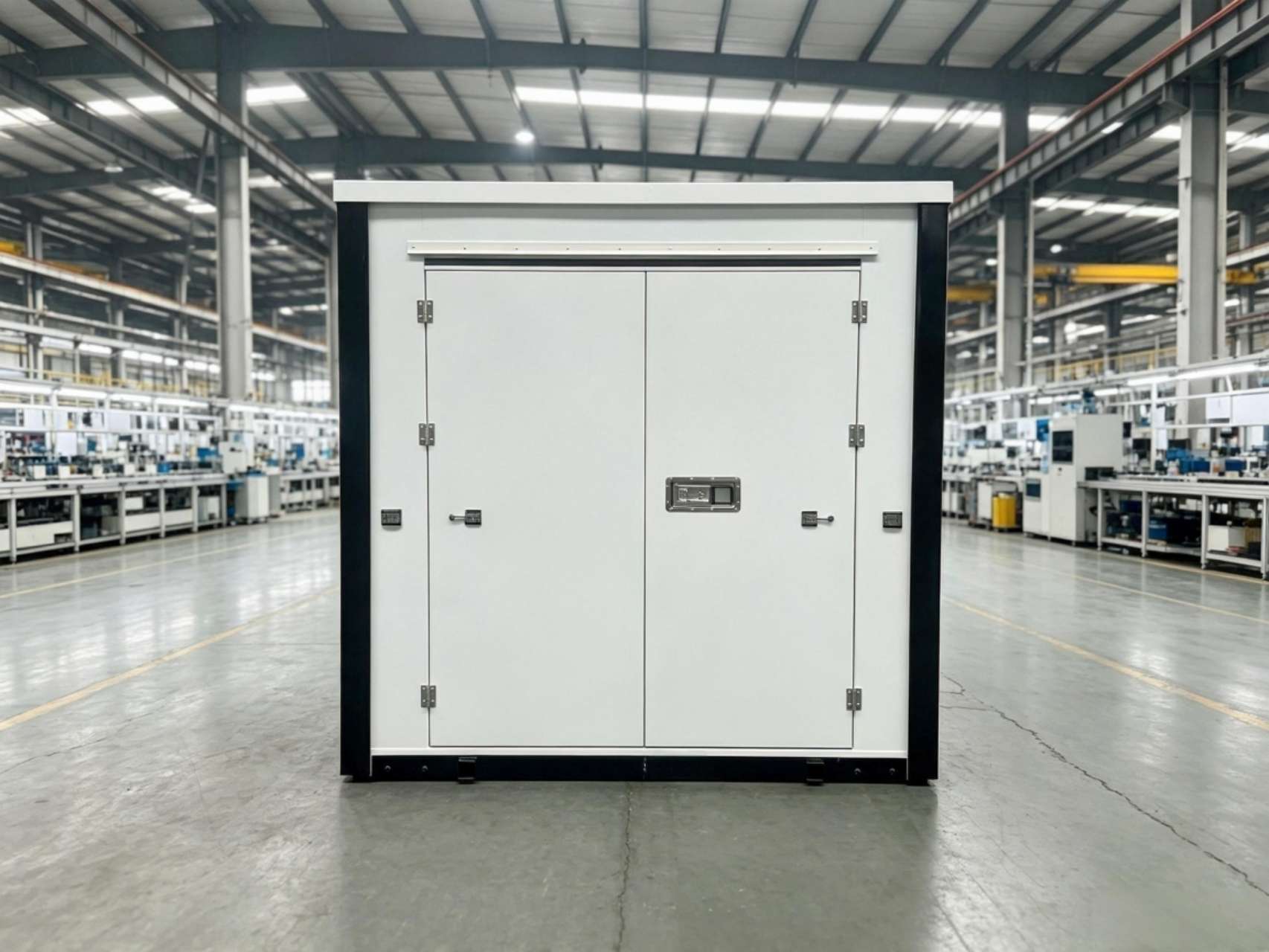

Model #209396-FLS2-I-PU-2DED-1P



This heavy-duty portable storage container is specially designed and equipped for multi-modal transportation, suitable for forklift, truck, and yard relocation. Each unit includes one complete unloading kit and factory-installed stacking braces for safe vertical stacking and stable outdoor placement. Built with a new-generation reinforced base and full PU insulation system, this dual-wall FLS panel container delivers superior thermal insulation, structural rigidity, and versatile segmented storage performance for industrial sites, construction yards, and long-term outdoor applications.



Overall Dimensions & Base Structure



– Exterior Dimensions: 19’ L × 93” W × 96” H (19-foot custom length, non‑20ft).

– Equipped with a new heavy-duty base and reinforced stacking braces.

– Forklift sleeve specifications: 965mm center-to-center spacing, inner size 100mm H × 305mm W.

– Internal base runners are precisely centered on forklift sleeve bottom plates to ensure balanced lifting weight distribution and stable transportation.



Exterior & Interior Panel Construction



This model features a double-layer FLS panel structure with full PU insulation (marked “I”):.



– Exterior Panel: 0.50mm white FLS steel panel (outer layer).

– Interior Panel: 0.50mm white FLS steel panel (inner layer).

– High-performance PU foam insulation filled between wall frames.

– Full PU insulation applied to roof, under base, door frames, and doors for excellent temperature retention, condensation resistance, and all-season thermal performance.



Color Finishing



– Base and corner guards: Black

– Walls, wall frames, doors, door frames, and pitched roof: White



Flooring System



The container is fitted with robust 19mm plywood flooring, covered top and bottom with slip-resistant laminated waterproof coating. The dual-sided waterproof and anti-slip surface provides long-lasting protection against moisture, abrasion, and heavy-duty daily operation.



Internal Partition & Flexible Layout



One corrugated partition divides the interior into two equal 50/50 storage zones. Additional partition mounting brackets are pre-installed at 1/4, 1/2, and 3/4 positions, allowing flexible re-partitioning and customizable interior space layout according to different storage needs.



Standard Hardware & Functional Accessories



– 2 sets of stainless steel T‑slot door holder/catch assemblies for secure door positioning during loading and unloading.

– 16 tie‑down rings total: 8 rings on each long wall, 2 rings mounted on each vertical post at 3ft and 5ft height from the floor, providing multi-point anchoring for cargo fixation.

– 2 welded D‑rings with support bracing (1 at each end) for lifting and secure site anchoring.

– 4 screened ventilation vents, with 2 vents installed in each partitioned space to maintain dry, ventilated interior environments and prevent mold and condensation.



Transport & Mobility Components.



– 4 standard 70mm wheel carriage tubes with pin lock holes and pin lock bolts, 2 tubes installed on each end for optional wheel assembly and flexible mobility.



Roof & Weather Protection System



– 30mm pitched roof for efficient rainwater drainage.

– Factory equipped with new top wall gaskets and hole snap caps for full dustproof and sealed protection.

– 2 door rain shields installed above door openings to prevent rainwater intrusion.

– Optional upgraded accessories (at extra cost): door gaskets and roof/wall washers for enhanced airtight and watertight performance.



Key Advantages



1. Full PU insulated double FLS panel structure provides outstanding thermal insulation compared with standard containers.

2. Flexible multi-position partition brackets support customizable interior space layout.

3. Complete tie-down ring system ensures stable and safe internal cargo storage.

4. Integrated stacking braces allow safe container stacking to save yard space.

5. Full mobility hardware including forklift sleeves, wheel carriage tubes, and lifting D-rings supports multi-modal transport and flexible relocation.

6. Comprehensive weather sealing, ventilation, and waterproof flooring ensure long-term reliable outdoor service life.
