With the increasing dependence on satellite navigation systems in modern transportation, defense, and autonomous platforms, signal reliability has become a critical concern. GNSS signals are often vulnerable to interference caused by intentional jamming, electromagnetic noise, and complex operating environments.

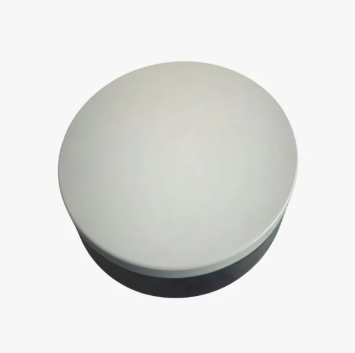

The compact anti-jamming antenna is designed to improve satellite navigation stability by effectively suppressing interference signals while maintaining reliable positioning performance. Featuring low power consumption, compact dimensions, and easy system integration, this antenna provides an advanced solution for mobile vehicles, ships, aircraft, unmanned platforms, and other applications requiring enhanced navigation security.

Why Anti-Jamming Technology Is Important for GNSS Systems

GNSS signals received from satellites are extremely weak when reaching the ground. In environments with strong electromagnetic interference, these signals can easily be disrupted, resulting in:

• Positioning errors

• Signal loss

• Navigation instability

• Reduced operational safety

For mission-critical platforms, maintaining continuous and accurate positioning is essential.

An anti-jamming antenna improves system reliability by identifying and suppressing interference sources, allowing navigation equipment to continue operating effectively even in challenging electromagnetic conditions.

Compact Design for Flexible System Integration

One of the key advantages of this anti-jamming antenna is its compact structure.

With dimensions of:

φ260 × 40 mm

the antenna provides powerful interference protection while maintaining a lightweight and space-saving design.

This makes it suitable for platforms where installation space and power consumption are limited, including:

• Autonomous vehicles

• UAV systems

• Marine vessels

• Aircraft navigation systems

• Mobile communication platforms

The compact design simplifies integration into existing navigation architectures without requiring significant structural modifications.

Advanced Multi-Channel Anti-Jamming Capability

The antenna adopts a 16-channel architecture, providing enhanced signal processing capability for complex interference environments.

The multi-channel design enables the system to analyze signals from different directions and apply adaptive interference suppression strategies.

Key advantages include:

• Improved interference detection

• Multi-directional signal processing

• Better navigation continuity

• Enhanced positioning reliability

This capability is especially valuable for platforms operating in areas with complicated electromagnetic conditions.

Simultaneous Suppression of Multiple Interference Sources

Unlike traditional antennas that may struggle against multiple jamming signals, this anti-jamming antenna can simultaneously counter interference from multiple directions.

It is capable of handling:

1 to 15 interference sources simultaneously

This allows the system to maintain stable operation even when facing complex interference scenarios involving multiple signal sources.

Applications that benefit from this capability include:

• Autonomous navigation systems

• Unmanned aerial vehicles

• Intelligent transportation equipment

• Industrial mobile platforms

High Anti-Jamming Performance

The antenna delivers strong interference suppression performance across different jamming conditions.

Single Jamming Source

Anti-jamming performance:

≥110 dB

This provides powerful protection against strong individual interference sources.

Multiple Jamming Sources

Anti-jamming performance:

≥85 dB against fifteen jamming sources

Even under multi-source interference conditions, the antenna maintains effective signal protection and improves navigation system reliability.

Wide Frequency Compatibility

The anti-jamming antenna supports major GNSS frequency bands, including:

• L1

• B1

• G1

• E1

This compatibility enables integration with various satellite navigation systems and provides flexibility for different applications.

The wide frequency support makes it suitable for global navigation requirements across multiple industries.

Applications Across Multiple Industries

The compact anti-jamming antenna is designed for various high-reliability navigation scenarios.

Mobile Vehicles

For intelligent vehicles and specialized mobile platforms, stable positioning is essential for:

• Route planning

• Autonomous operation

• Fleet management

• Safety monitoring

Anti-jamming technology helps maintain navigation accuracy in areas with electromagnetic interference.

Ships and Marine Equipment

Marine environments often involve complex communication and navigation conditions.

The antenna improves:

• Navigation stability

• Positioning continuity

• Operational safety

It is suitable for commercial vessels, special-purpose ships, and autonomous marine platforms.

Aircraft and UAV Platforms

Aircraft and unmanned aerial vehicles require reliable navigation signals for safe operation.

The compact anti-jamming antenna helps protect GNSS systems from interference during:

• Flight missions

• Remote operations

• Autonomous navigation

Unmanned Platforms

As unmanned systems become more widely used, navigation security becomes increasingly important.

The antenna provides improved positioning reliability for:

• UAVs

• Autonomous ground vehicles

• Robotic platforms

• Intelligent inspection systems

Advantages of Compact Anti-Jamming Antenna Solutions

Compared with conventional navigation antennas, this solution provides several key benefits:

1. Strong Interference Resistance

Advanced anti-jamming technology significantly reduces the impact of hostile or accidental interference.

2. Compact and Lightweight Structure

The small form factor allows installation on space-limited platforms.

3. Low Power Consumption

Optimized power design supports long-duration operation for mobile and unmanned systems.

4. Easy Integration

The antenna structure is designed for convenient integration with existing GNSS receivers and navigation systems.

5. Reliable Performance in Complex Environments

The ability to suppress multiple interference sources improves operational reliability in demanding conditions.

Future Development of Anti-Jamming Navigation Technology

With the rapid growth of autonomous systems, intelligent transportation, and unmanned platforms, reliable satellite navigation has become more important than ever.

Anti-jamming antennas will continue to play a key role in improving GNSS security by providing:

• More stable positioning

• Better electromagnetic resilience

• Higher operational reliability

• Stronger navigation protection

Compact, low-power, high-performance anti-jamming antenna solutions will become an essential component in next-generation navigation systems.

Conclusion

The compact anti-jamming antenna provides an effective solution for improving GNSS performance in environments affected by interference. With 16-channel processing capability, support for multiple GNSS frequency bands, and the ability to suppress up to 15 interference sources simultaneously, it delivers reliable navigation protection for mobile vehicles, ships, aircraft, and unmanned platforms.

Combining compact design, low power consumption, and powerful anti-jamming performance, this antenna helps ensure continuous and accurate positioning for modern high-reliability navigation applications.
